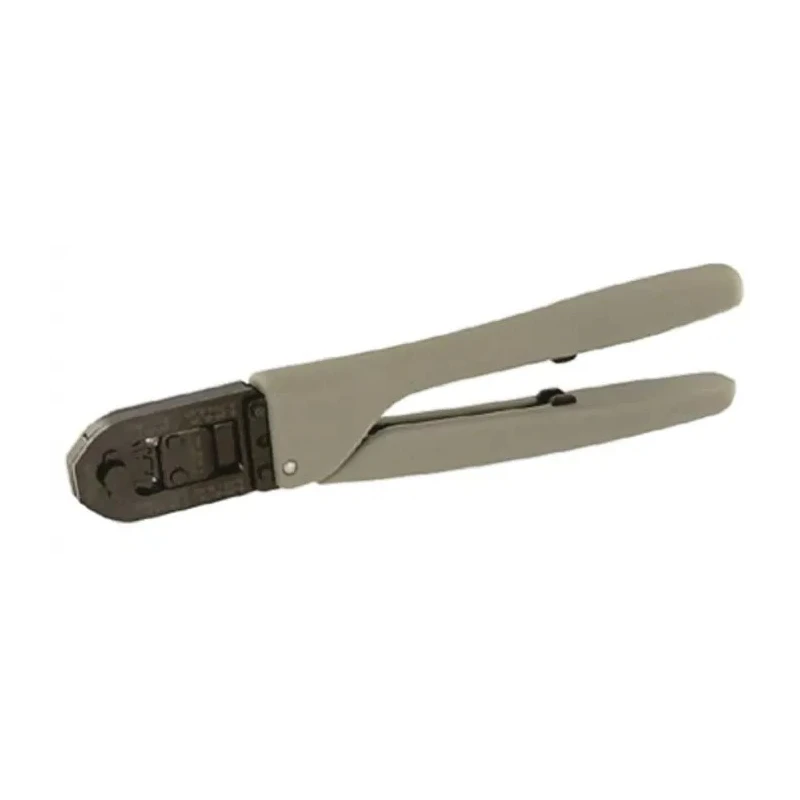

TE Connectivity CERTI-CRIMP II Manual Crimp Tool for AMPLIMITE HD-20 Connector Contacts 297.18mm 91503-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity CERTI-CRIMP II Manual Crimp Tool for AMPLIMITE HD-20 Connector Contacts 297.18mm 91503-1

Name: TE Connectivity CERTI-CRIMP II Manual Crimp Tool for AMPLIMITE HD-20 Connector Contacts 297.18mm 91503-1
Brand: TE Connectivity
SKU: 131357
Price: 1411.09 USD
Availability: InStock



Category Crimp Tools Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Model	91503-1
Handle Type	Manual, Long
Overall Length	297.18mm
Series	CERTI-CRIMP II
For Use With	AMPLIMITE HD-20 Connector Contacts
Standards/Approvals	ISO 9001
Minimum Wire Size mm²	0.08
Maximum Wire Size mm²	0.2
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	20AWG
CERTI-CRIMP TOOL FOR AMPLIMITE CONTACTS FOR 28-24 & 24-20AWG WIREBrand	TE Connectivity

Key Features

This crimp tool features a manual long handle for comfortable usage.
It includes an adjustable ratchet mechanism for precise crimp cycles.
The tool supports wire sizes from 0.08 mm² to 0.2 mm² (28 AWG to 20 AWG).
Constructed to high specifications following ISO 9001 standards.
Ergonomically designed with contact locators, wire stops, and flip locator for small terminals.
Feature four-position insulation crimp height adjustment for insulated terminals.
The ratchet lock ensures full crimp cycle completion, preventing partial crimps.
Durable, repairable design with a life expectancy of over 50,000 cycles if maintained properly.

Product Description

TE Connectivity 91503-1 CERTI-CRIMP II Manual Crimp Tool is engineered for high-quality crimping of AMPLIMITE HD-20 Connector Contacts. With an overall length of 297.18mm, this premium-grade straight action hand tool ensures optimal electrical and mechanical performance. The tool’s fixed crimp dies and adjustable ratchet system guarantee precise and consistent crimps, requiring minimal operator skill.

Designed and manufactured to meet ISO 9001 standards, the tool incorporates contact locators, wire stops, and flip locator features for enhanced accuracy, especially when working with small terminals. The four-position insulation crimp height adjustment suits insulated terminals.

The CERTI-CRIMP II tool’s ergonomic handles provide preset force pressures, while the unique ratchet mechanism ensures the tool only opens once a complete crimp cycle is reached, preventing incomplete crimps and improving reliability.

This tool is repairable and offers a service life of over 50,000 cycles with proper maintenance. It is ideal for industrial, laboratory, manufacturing, electrical, and maintenance applications that require consistent, high-quality terminal crimping in low volume production, prototype development, and repair settings.

This crimp tool features a manual long handle for comfortable usage. It includes an adjustable ratchet mechanism for precise crimp cycles. The tool supports wire sizes from 0.08 mm² to 0.2 mm² (28 AWG to 20 AWG). Constructed to high specifications following ISO 9001 standards.

Ergonomically designed with contact locators, wire stops, and flip locator for small terminals. Feature four-position insulation crimp height adjustment for insulated terminals. The ratchet lock ensures full crimp cycle completion, preventing partial crimps.

Durable, repairable design with a life expectancy of over 50,000 cycles if maintained properly. Suitable for low production runs, prototype work, repairs, and consistent high-quality terminations. Explore more professional-grade crimping tools and accessories with EnvMart for your electrical and mechanical tool needs.
