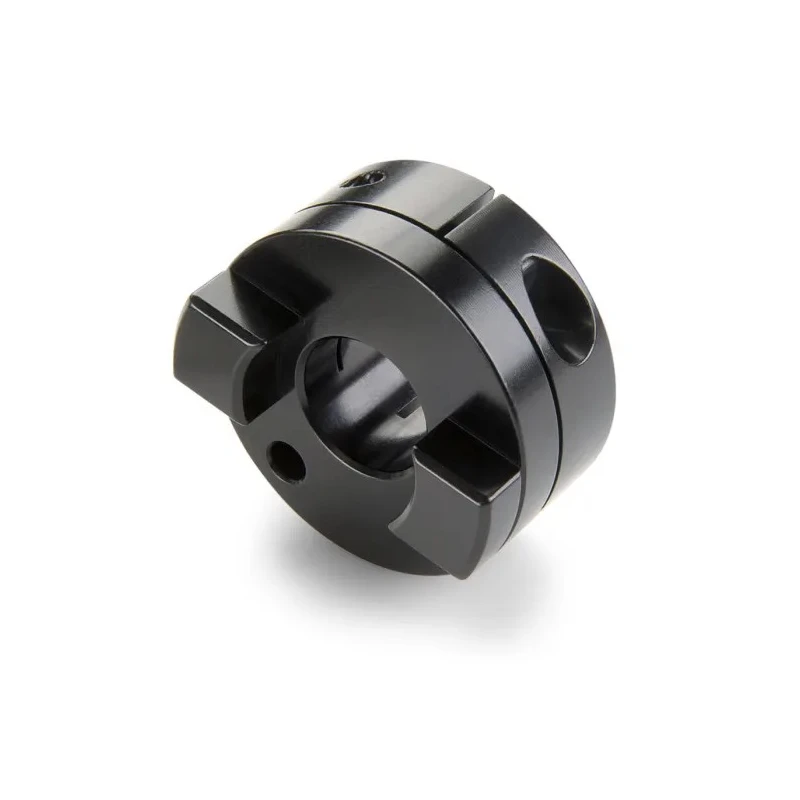

Ruland Clamp Style Oldham Coupler 24mm Bore 57.2mm OD 28.7mm Length Finished with No Keyway MOCT57-24-A
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Ruland |
| Material | Aluminium |
| Model | MOCT57-24-A |
| Maximum Speed | 4500rpm |
| Outside diameter | 57.2mm |
| Bore Diameter | 24mm |
| Bore Type | Finished with No Keyway |
| Standards/Approvals | RoHS, REACH |
| Misalignment - Angular | 0.5° |
| Misalignment - Parallel | 0.25mm |
| Misalignment - Axial | 0.2mm |
| Hub Length | 28.7mm |
| Securing | 13mm and 19mm anodised aluminium hubs are secured to the shafts with one set screw on each end. 33mm, 35mm and 41mm hubs have 2 set screws set 90° apart |
Key Features
- The coupling is manufactured with black anodised aluminium hubs to ensure durability and corrosion resistance.
- Designed to accommodate small axial and angular misalignments for precise shaft coupling.
- Center torque disc made from acetal or nylon offers effective torque overload protection by breaking cleanly when necessary.
- Supports a maximum speed of 4500 rpm for high-speed machinery applications.
- The clamp style hubs are secured to the shafts using set screws, with configurations depending on hub size.
- Compatible with light industrial and motion control use cases such as servo and stepper motors.
- Designed and manufactured in the United States, ensuring quality and adherence to RoHS and REACH standards.
- Requires two hubs and one torque disc to assemble a complete coupling unit.
Product Description
Ruland MOCT57-24-A Clamp Style Oldham Coupler is engineered for reliable mechanical power transmission, featuring a 24mm bore, 57.2mm outside diameter, and a 28.7mm hub length. The coupling is finished with no keyway bore and constructed from black anodised aluminium hubs, offering excellent durability and corrosion resistance.
This three-piece clamp style coupling includes two hubs and a replaceable centre torque disc made from acetal or nylon, which provides mechanical overload protection by breaking cleanly during torque spikes to safeguard connected machinery.
The design accommodates small angular (0.5°), parallel (0.25mm), and axial (0.2mm) misalignments, making it ideal for light industrial, motion control, servo, and stepper motor applications requiring precise shaft coupling at speeds up to 4500 rpm.
Hubs are secured to shafts using one or two set screws depending on hub size to ensure a secure fit. Manufactured in the United States, this coupling complies with RoHS and REACH regulations, ensuring environmental and safety standards.
The coupling hubs are black anodised aluminium for strength and corrosion resistance. The centre torque disc is replaceable and made of acetal or nylon. Supports small misalignments critical for motion control applications.
Maximum operational speed up to 4500 rpm. Clamp style design allows for quick installation and replacement. Provides torque overload protection by cleanly breaking the centre disc. Set consists of two hubs and one torque disc for full assembly.
This coupling is suitable for use in multiple industrial sectors including mechanical, manufacturing, laboratory, and motion control environments where precise, reliable shaft coupling is required. For related products, explore the Mechanical Power Transmission Couplers category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum speed of 4500 rpm, making it suitable for high-speed machinery applications.
The coupling has a bore diameter of 24mm, an outside diameter of 57.2mm, and a hub length of 28.7mm.
It is constructed with black anodised aluminium hubs and features a center torque disc made from either acetal or nylon.
The design accommodates small angular misalignments of 0.5°, parallel misalignments of 0.25mm, and axial misalignments of 0.2mm.
The hubs are secured to the shafts using set screws; 13mm and 19mm hubs use one set screw on each end, while larger hubs have two set screws set 90° apart.
It complies with RoHS and REACH standards, ensuring it meets environmental and safety regulations.
This coupling is suitable for light industrial and motion control applications, including use with servo and stepper motors.
The center torque disc is designed to break cleanly during torque spikes, providing effective overload protection for connected machinery.
The bore type is finished with no keyway, allowing for a smooth fit on the shaft.
This coupling is manufactured in the United States, ensuring quality standards are met.
A complete coupling unit consists of two hubs and one torque disc, which are required for assembly.
The model number for this coupling is MOCT57-24-A, which identifies its specific design and specifications.
