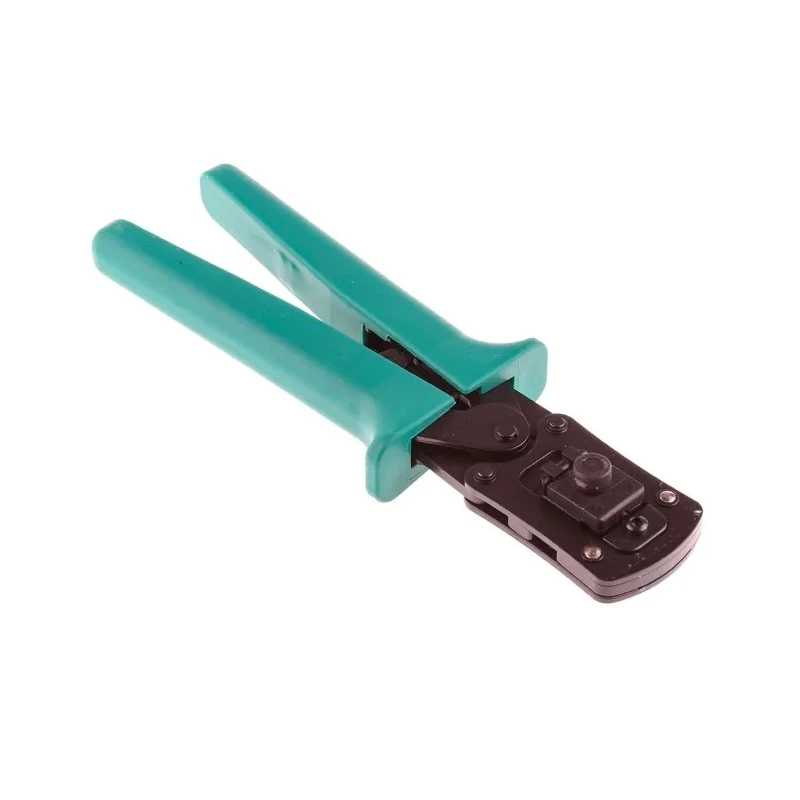

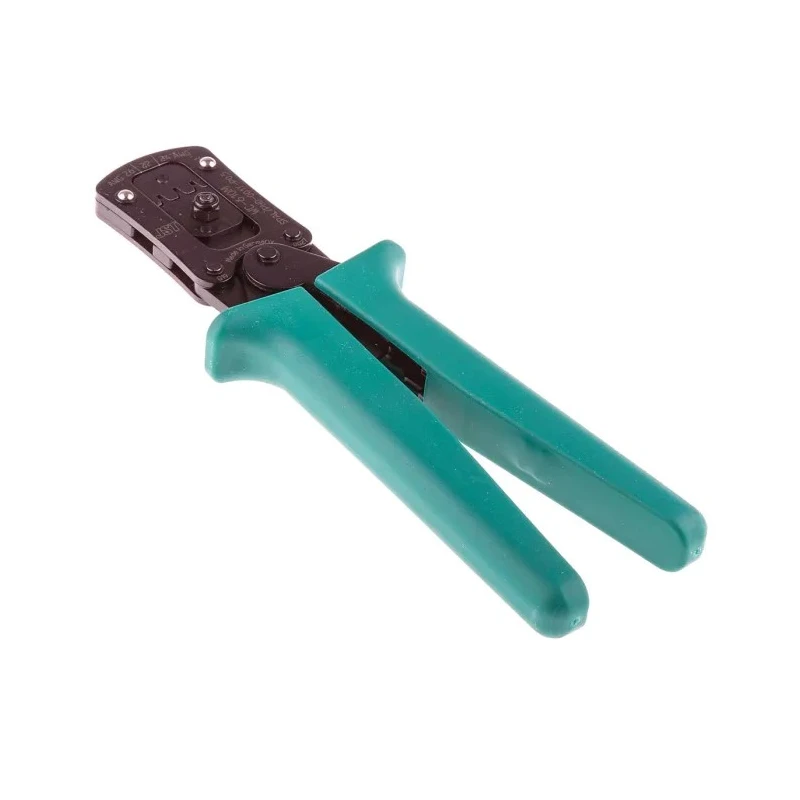

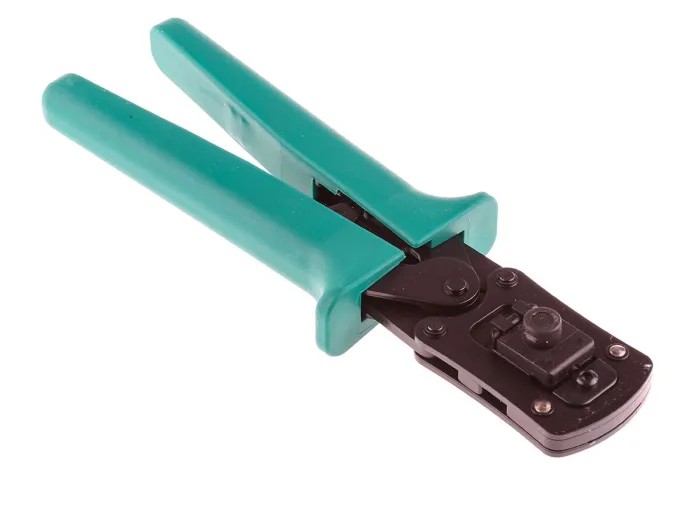

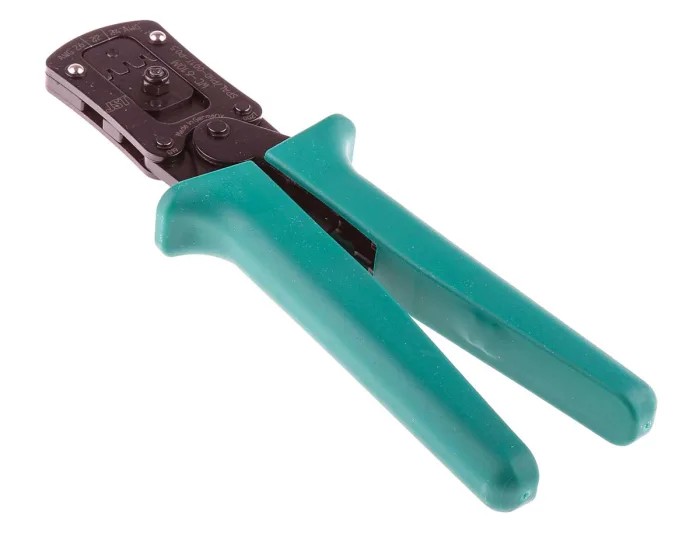

JST CS 10-WC 610M Hand Crimping Tool for SPHD and SPAL Contacts WC-610M

JST WC-610M is a high-quality hand crimping tool specifically designed for crimping SPHD and SPAL type contacts. The tool features a durable construction with ergonomic soft grip handles and a ratchet mechanism that ensures consistent, full-crimp cycles. It provides gas-tight crimps essential for preventing corrosion and maintaining secure electrical connections.

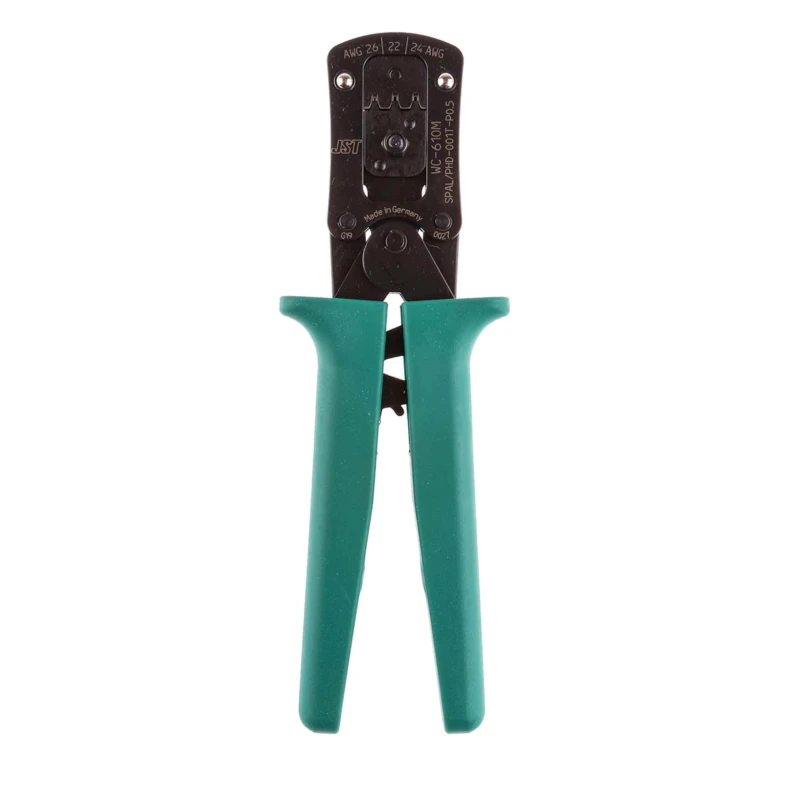

The tool includes precision ground dies with three cavities supporting wire gauges 22 AWG, 24 AWG, and 26 AWG. An ergonomic design optimizes user comfort while the flip-style locator and wire stop accurately position terminals and wires for precise crimps.

The ratchet mechanism is pre-set to a specific force and requires complete closure of the handles to complete the crimp cycle. This prevents partial crimps, ensuring reliable and repeatable results. For operator convenience, the ratchet can be released if jamming or terminal misplacement occurs by pressing the release lever.

Applications for the JST WC-610M include electrical, industrial, and manufacturing environments where dependable Crimp Tools are essential for producing robust wire-to-terminal connections. The tool supports tasks in electronics assembly, automotive manufacturing, and general maintenance involving SPHD and SPAL contacts.

Durable construction ensures long-lasting performance. Precision ground dies accommodate wire sizes 22 AWG, 24 AWG, and 26 AWG. Ergonomic soft grip handles for comfortable use during extended operations. Ratchet mechanism prevents incomplete crimps by requiring full handle closure.

Flip-style locator and wire stop enable accurate terminal positioning. Adjustable pre-set load allows customization of crimping force. Produces gas-tight electrical and insulation crimps to prevent corrosion and ensure reliable connections.
