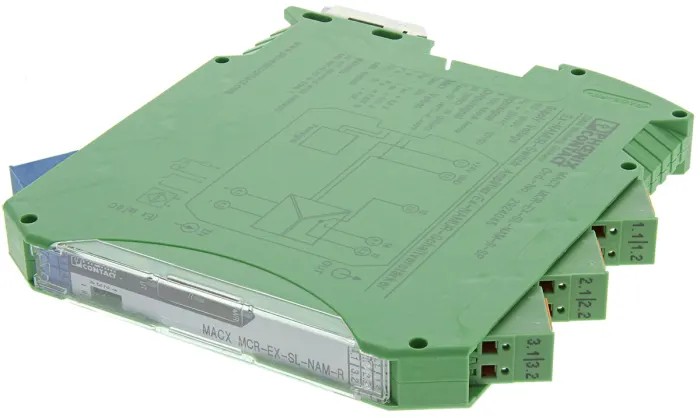

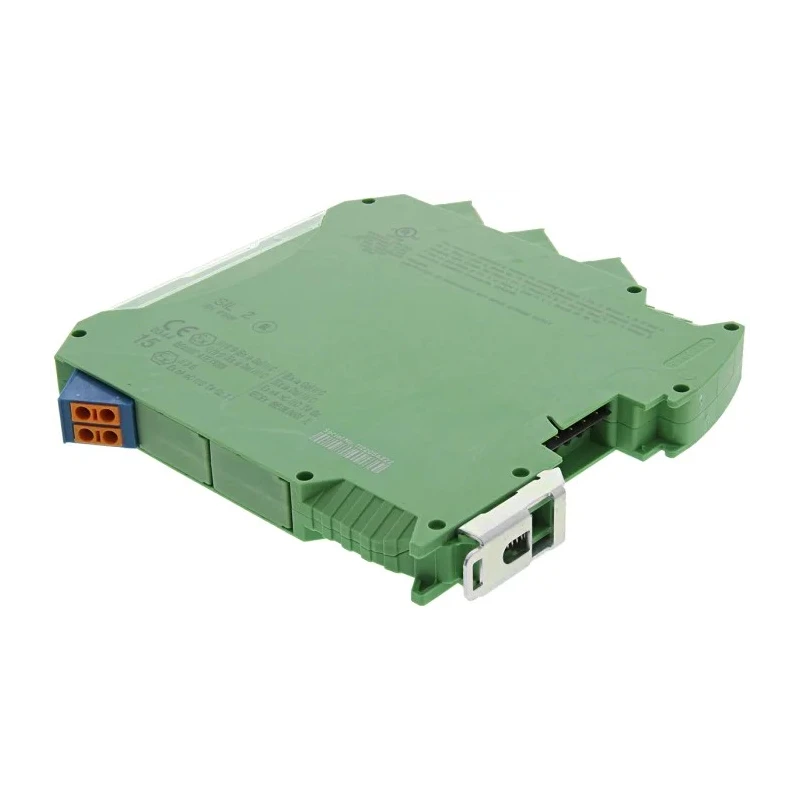

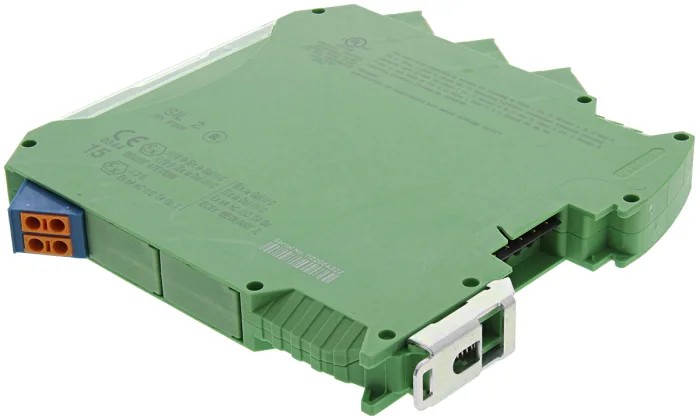

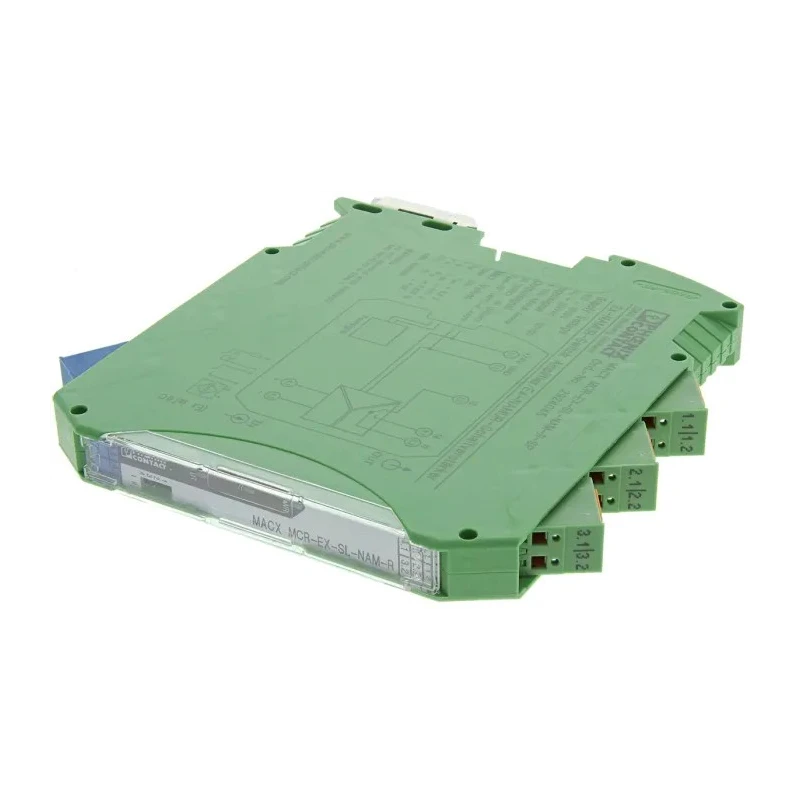

Phoenix Contact Galvanic Barrier Digital ATEX, 1 Channel, 19.2-30V DC Supply, DIN Rail Mount 2924045
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Model | 2924045 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | MACX MCR-EX-SL-NAM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Push-in |
| Number Of Channels | 1 |
| Supply Voltage | 19.2, 30V dc |
| Signal Type | Digital |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | UL, CE, IEC, ATEX, RoHS, WEEE |
| Barrier Type | Galvanic Barrier |
| Maximum Safety Current | 10mA |
| Maximum Safety Voltage | 125, 253V dc |
Key Features
- Features one channel for digital signal isolation.
- Operates on 19.2 to 30 V dc supply voltage.
- Designed for DIN rail mounting with push-in terminals.
- Supports maximum safety current of 10 mA and voltage of 125/253 V dc.
- Wide operating temperature range from -20°C to +60°C.
- IP20 rated enclosure suitable for industrial environments.
- Complies with UL, CE, IEC, ATEX, RoHS, and WEEE standards.
- Contacts are gold-plated to ensure corrosion resistance and longevity.
Product Description
Phoenix Contact 2924045 galvanic barrier digital is designed for industrial and hazardous area use, providing robust isolation and safety in control and monitoring circuits. It is suitable for applications requiring digital signal isolation with hazardous area certification (ATEX).
This galvanic barrier supports one channel and operates with a supply voltage ranging from 19.2 to 30 V dc, ensuring reliable performance on DIN rail mounting systems. The device features push-in terminals for secure and convenient wiring.
Its maximum safety current is 10 mA with maximum safety voltages of 125 V dc and 253 V ac. The unit supports a wide operating temperature range from -20°C up to 60°C, making it suitable for harsh and demanding industrial environments.
The design includes gold-plated contacts that prevent corrosion, extending the product’s durability and reliability. The IP20 rated enclosure provides protection against solid objects, making it suitable for typical industrial control cabinets.
The galvanic barrier includes three-way isolation, controlling two separate output signals simultaneously while preventing short circuit risks and signal interference. LED indicators on the unit provide real-time status feedback for error detection, supply voltage, and switching state, enhancing ease of use and safety monitoring.
This component is ideal for use with proximity sensors and switches in potentially explosive atmospheres, laboratory testing setups, technical measurements, and medical equipment applications.
One channel digital galvanic barrier with ATEX hazardous area certification. Operating voltage between 19.2 and 30 V dc for flexible integration. Push-in terminals and DIN rail mounting format for ease of installation. Gold-plated contacts ensure long service life with corrosion resistance.
Compatible with proximity sensors and switches in explosive atmospheres. Wide temperature range from -20°C to +60°C supports harsh environments. LED indicators for supply voltage, switching state, and error notification.
Three-way isolation enhances safety and signal integrity. Conforms to UL, CE, IEC, ATEX, RoHS, and WEEE standards. Made in Germany ensuring industrial quality and reliability. Explore the range of Phoenix Contact Safety Barriers and galvanic isolators at EnvMart for superior safety and performance in industrial and hazardous area applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates on a supply voltage ranging from 19.2 to 30 V dc.
The maximum safety current is 10 mA.
It features push-in terminals for secure and convenient wiring.
The unit supports an operating temperature range from -20°C to +60°C.
It complies with UL, CE, IEC, ATEX, RoHS, and WEEE standards.
This model supports one channel for digital signal isolation.
The enclosure has an IP20 rating, providing protection against solid objects.
Yes, it has ATEX hazardous area certification, making it suitable for such environments.
It is ideal for use with proximity sensors and switches in potentially explosive atmospheres, as well as laboratory testing and medical equipment applications.
It includes three-way isolation, allowing control of two separate output signals simultaneously while preventing short circuit risks and signal interference.
It is made in Germany, ensuring industrial quality and reliability.
LED indicators provide real-time status feedback for error detection, supply voltage, and switching state.
