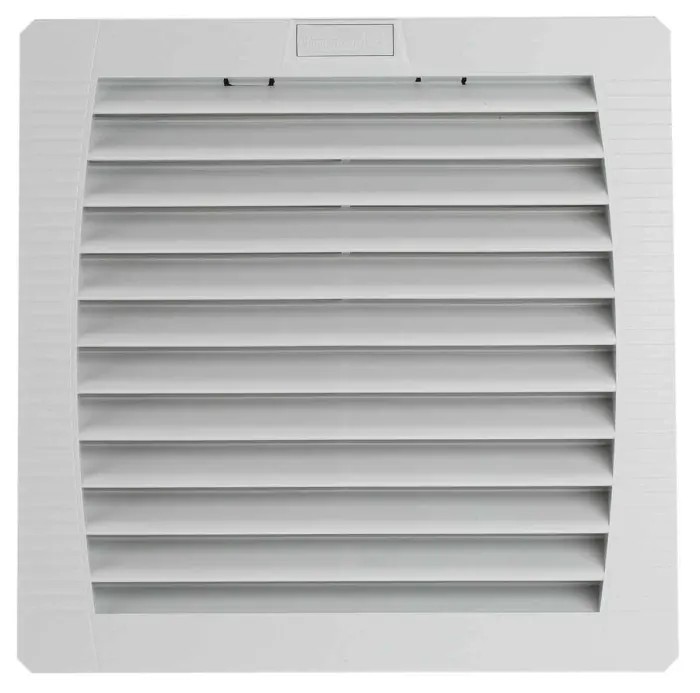

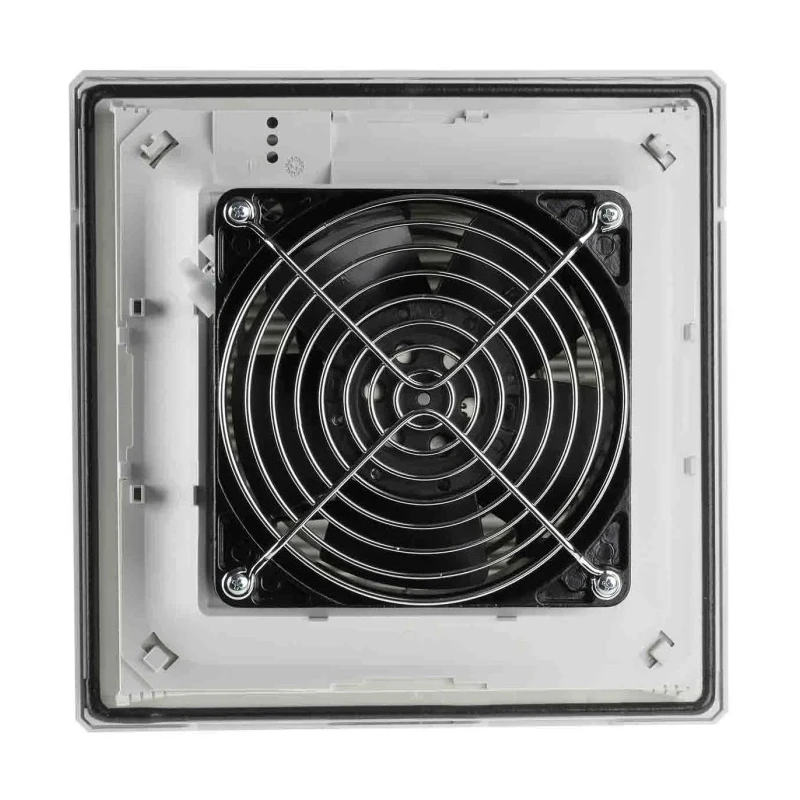

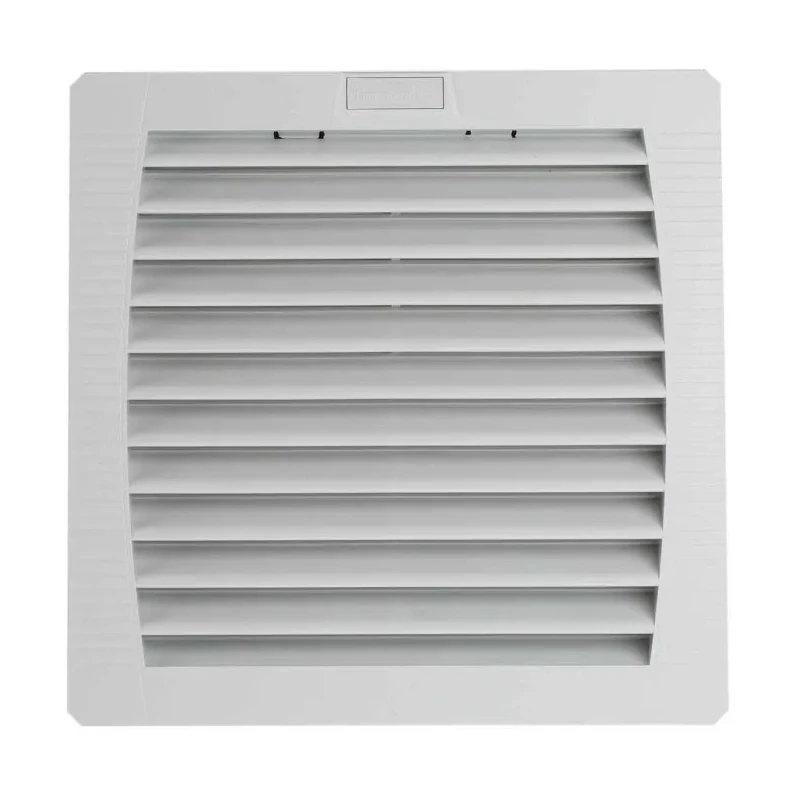

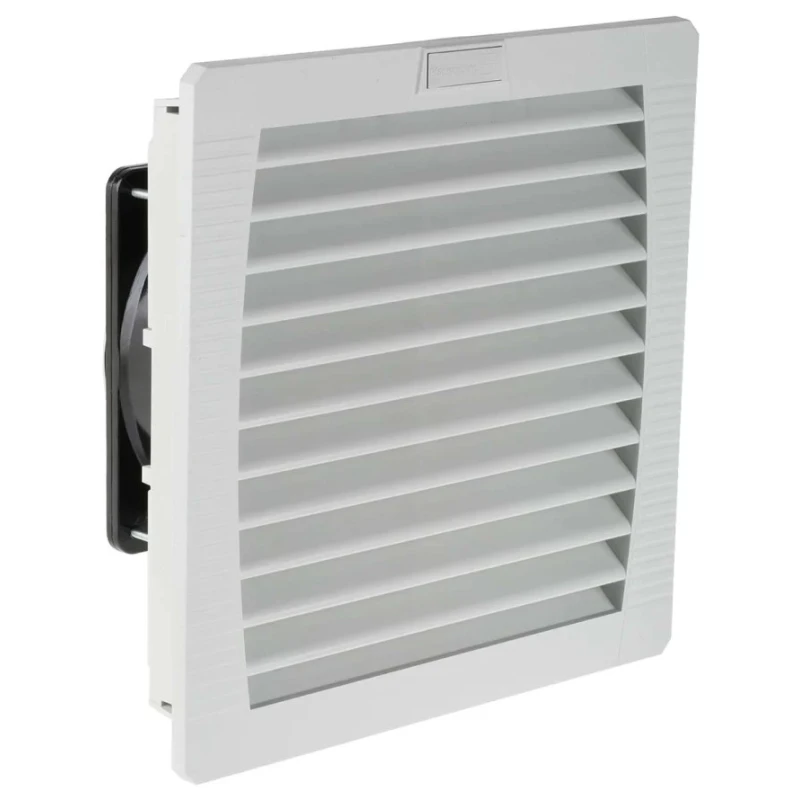

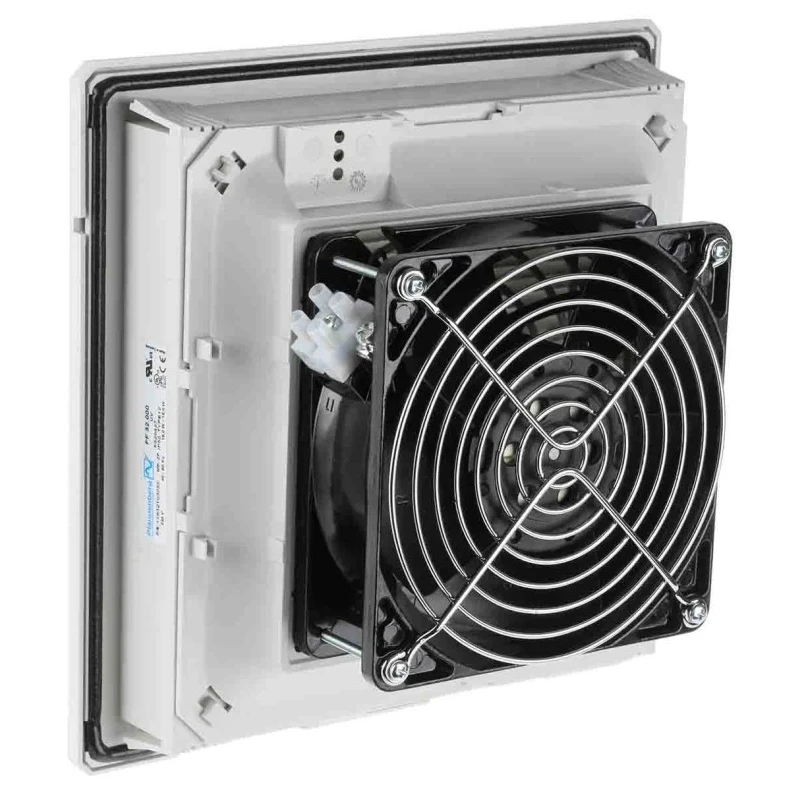

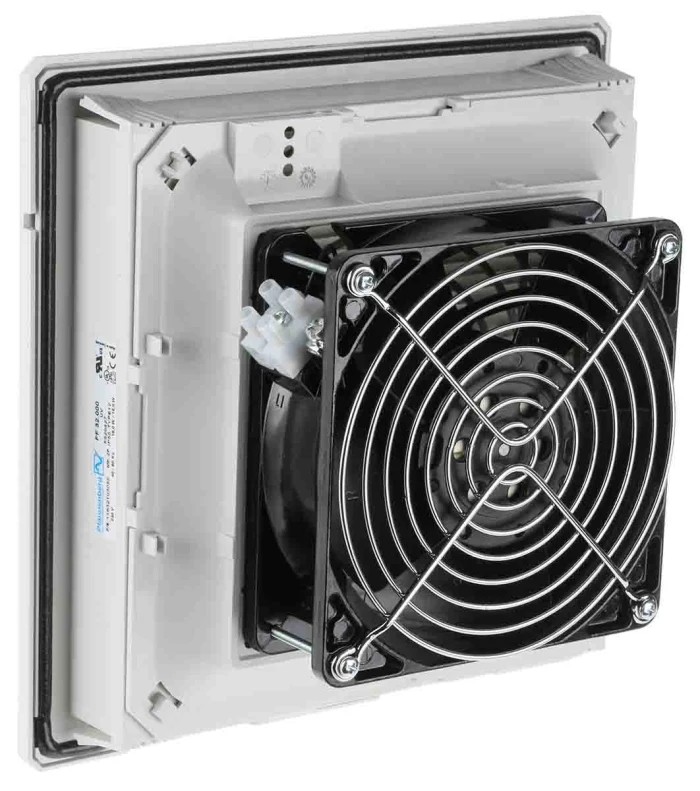

Pfannenberg PF 32.000 Series Filter Fan 230V AC, 100 m³/h Filtered Airflow, 178.5 m³/h Unimpeded Airflow, Protection IP55

Pfannenberg PF 32.000 Series Filter Fan PF 32.000 operates at 230V AC with a power input of 180mA, delivering a filtered airflow of 100 m³/h and an unimpeded airflow of 178.5 m³/h. This filter fan is designed to provide IP55 protection, ensuring resistance to dust and water ingress, making it ideal for use in control cabinets and industrial enclosures.

Featuring a sturdy flatpack configuration and sleeve bearing type, the fan offers reliable performance with a face size of 202 mm by 202 mm and an installation depth of 87 mm. The integrated filter mat effectively captures airborne dirt while maintaining high airflow, ensuring optimal cooling and protection of sensitive equipment.

The PF 32.000 filter fan includes a patented click and fit design allowing hardware-free installation and easy filter mat replacement. Its reversible airflow capability enables it to either introduce or extract air, adaptable for various application needs. The cage clamp terminal allows flexible wiring with a 90-degree rotatable position accommodating different installation configurations.

Certified to standards including cUL, ISO, RoHS, EN, and UL, the fan ensures high quality and compliance for industrial use. The RAL 7035 color finish provides a professional and durable exterior suitable for indoor and outdoor applications. This series delivers extremely high airflow, aligning with Pfannenberg's patented innovations for water and dust pre-separation, thereby extending filter life and reducing maintenance efforts.

This filter fan is commonly applied in industrial, HVAC, manufacturing, and automation environments where effective thermal management and dust protection are critical. The product is made in Germany, reflecting high engineering standards and durability.

Operates with 230V AC and 180mA current input. Provides 100 m³/h filtered airflow and 178.5 m³/h unimpeded airflow. Features IP55 rating for superior dust and water resistance. Integrated filter mat captures most dirt with high airflow retention.

Flatpack, sleeve bearing design with 202 mm x 202 mm face size. Easy installation with click and fit mechanism and reversible airflow. Compliant with cUL, ISO, RoHS, EN, and UL standards. Rigid, UV-stable RAL 7035 housing suitable for diverse environments.

Compatible with size 3 cutouts from 3rd and 4th generation Pfannenberg products. Discover more Filter Fans and cooling solutions in the Industrial Coolers Blowers & Fans category at EnvMart.
