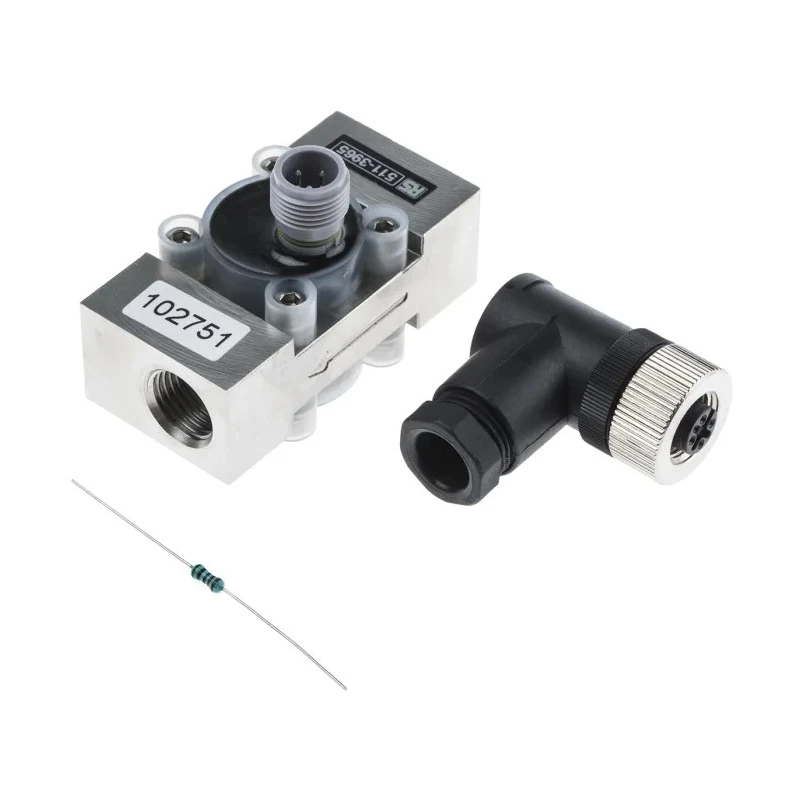

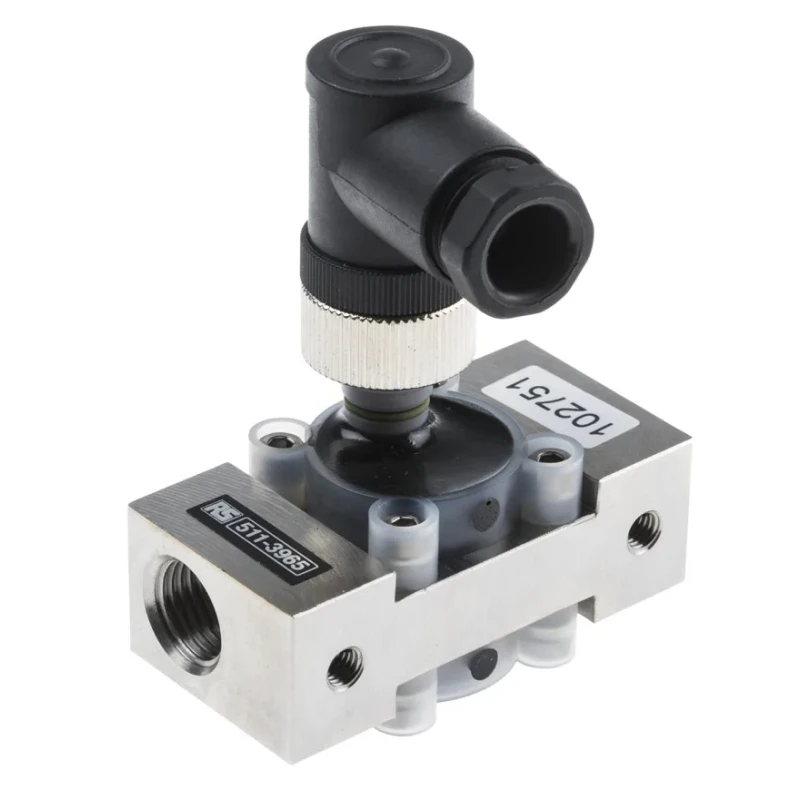

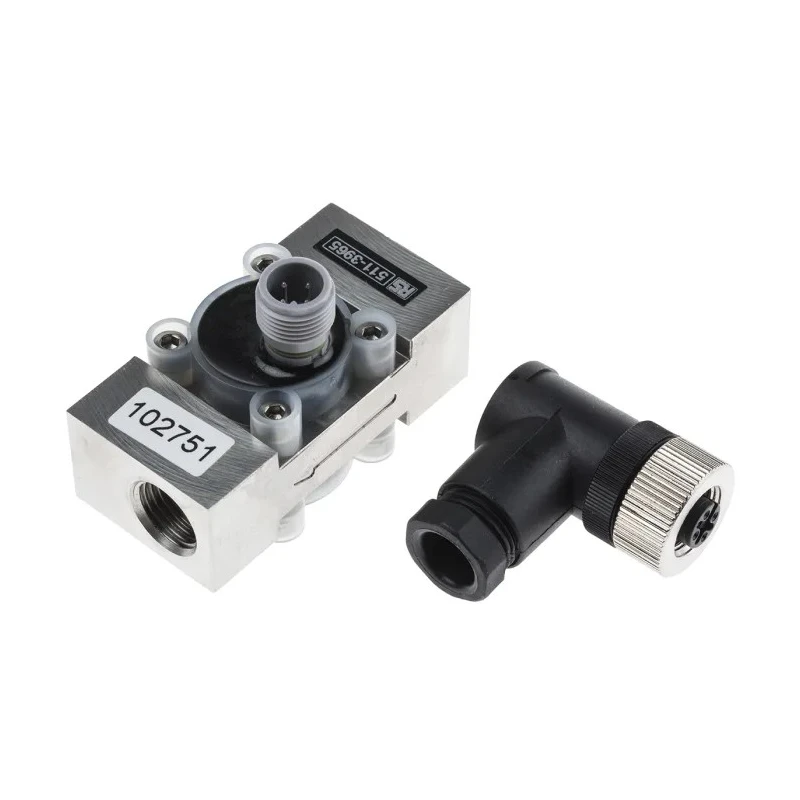

RS PRO Stainless Steel Turbine Flow Meter 0.25L/min to 6.5L/min 1/2 BSP, 1/4 BSP 511-3965
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Body Material | 316 Stainless Steel |
| Model | 511-3965 |
| Maximum Operating Temperature | 125°C |
| Minimum Flow Rate | 0.25L/min |
| Maximum Flow Rate | 6.5L/min |
| Wetted Materials | Sapphire, Ceramic, Viton, Polyvinylidene fluoride, 316 Stainless Steel |
| Connection Thread Standard | BSP |
| Connection Thread Size | 1/2 BSP, 1/4 BSP |
| RS PRO Flow Meter 0.3L/min to 10L/min, 1/2 BSP, 1/4 BSP, BSPBrand | RS PRO |
Key Features
- Constructed with durable 316 Stainless Steel body ensuring excellent corrosion resistance.
- Suitable for aggressive chemicals with Viton O ring seal for reliable sealing.
- Features sapphire bearings for enhanced durability and precision.
- Equipped with a Hall effect sensor providing NPN Pulse output for accurate signal detection.
- Operates efficiently within temperature range -25°C to 125°C and pressure up to 10 bar.
- Connection thread sizes include 1/2 BSP and 1/4 BSP compliant with BSP standard.
- Offers 2% Full Scale Deflection (FSD) linearity and 0.25% repeatability for measurement accuracy.
Product Description
RS PRO 511-3965 Turbine Flow Meter is engineered to deliver precise flow measurement with a flow range from 0.25 to 6.5 liters per minute. The robust construction with a 316 Stainless Steel body and cap combined with a Viton O ring seal provides excellent resistance against aggressive chemicals, making it suitable for harsh industrial environments.
The turbine rotates on hard-wearing sapphire bearings ensuring long service life and minimal maintenance. Magnets are over-moulded and detected through the chamber wall via a Hall effect detector, enabling precision signal output.
This turbine flow meter offers reliable performance within a temperature range of -25 to 125 degrees Celsius and can withstand pressures up to 10 bar. It complies with BSP standards featuring 1/2 BSP and 1/4 BSP thread sizes for versatile piping connections.
Its electrical output includes an NPN pulse signal, which is useful for integration with automation and monitoring systems. Durable 316 Stainless Steel construction for corrosion resistance. Viton O ring seal suitable for aggressive chemical usage.
Sapphire bearings for lasting durability. Hall effect sensor with NPN pulse output for accurate flow detection. Operational temperature range from -25°C to 125°C. Pressure rating up to 10 bar compatible with BSP threading.
High accuracy with 2% FSD linearity and 0.25% repeatability.
RS PRO brand is recognized for professional quality products across industrial applications. This Turbine Flow Meter is an excellent choice for precise, reliable flow measurement. Explore more measuring instruments and flow meters on EnvMart to meet your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow meter operates within a measurement range of 0.25 to 6.5 liters per minute.
It features a body made of 316 stainless steel, with wetted materials including sapphire, ceramic, Viton, and polyvinylidene fluoride.
The maximum operating temperature for this turbine flow meter is 125°C.
This model supports 1/2 BSP and 1/4 BSP connection threads compliant with BSP standards.
It offers an accuracy of 2% Full Scale Deflection (FSD) linearity and 0.25% repeatability.
The flow meter can withstand pressures up to 10 bar.
The Hall effect sensor provides an NPN pulse output for accurate signal detection.
The minimum flow rate that can be measured is 0.25 liters per minute.
It operates efficiently within a temperature range of -25°C to 125°C.
This turbine flow meter is suitable for measuring the flow of aggressive chemicals due to its corrosion-resistant construction.
It is equipped with sapphire bearings which enhance durability and precision, ensuring a long service life.
The country of origin for this product is the United Kingdom.
