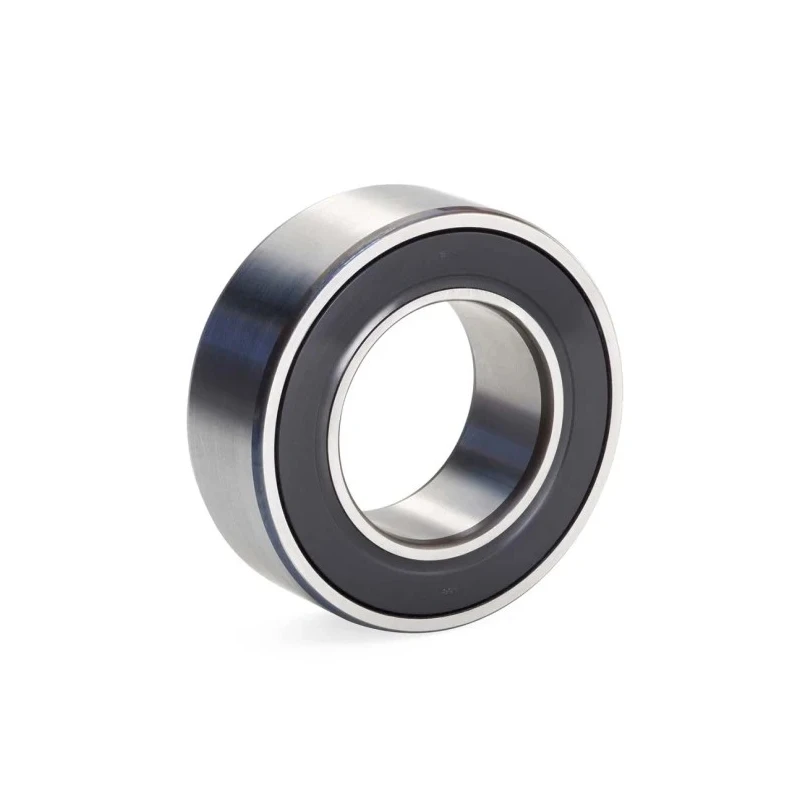

SKF 2 Row Angular Contact Ball Bearing 10 mm ID 30 mm OD 14 mm Race Width 3200 A-2RS1TN9/MT33

Free Delivery in India | Lowest Global Shipping Charges

SKF 2 Row Angular Contact Ball Bearing 10 mm ID 30 mm OD 14 mm Race Width 3200 A-2RS1TN9/MT33



Category Rotary Bearings & Housing Units Brand SKF Condition New

Specifications

Country of Origin	India
Brand	SKF
Model	3200 A-2RS1TN9/MT33
Series	2 Light
Outside diameter	30mm
Inside Diameter	10mm
Number of Rows	2
Ball Material	Steel
Limiting Speed	17000rpm
Internal Clearance	CN
End Type	Sealed
Bore Type	Parallel
Bearing Type	Double Row Angular Contact Ball
Cage Material	Non-Metallic
Race Width	14mm
Static Load Rating	4.3kN
Race Type	Plain
Dynamic Load Rating	7.61kN
Contact Angle	30°
RS PRO 2 Row Ball Bearing - 10 mm ID, 30 mm OD 14 mm Race WidthRS Stock No.	234-6860Brand: RS PRO

Key Features

This bearing features a double row angular contact design suitable for combined radial and axial loads in both directions.
The non-metallic cage material is fiberglass reinforced nylon 66 for enhanced self-lubrication and elasticity.
Constructed from ultra-clean, heat-processed steel for superior hardness and durability.
Sealed end type provides protection against contaminants, increasing bearing lifespan.
High limiting speed of 17000 rpm allows use in high-speed applications.
Capable of operating at temperatures up to +150°C for demanding industrial settings.
Contact angle of 30° ensures efficient axial load handling.
Static load rating of 4.3 kN and dynamic load rating of 7.61 kN support heavy load capacity.

Product Description

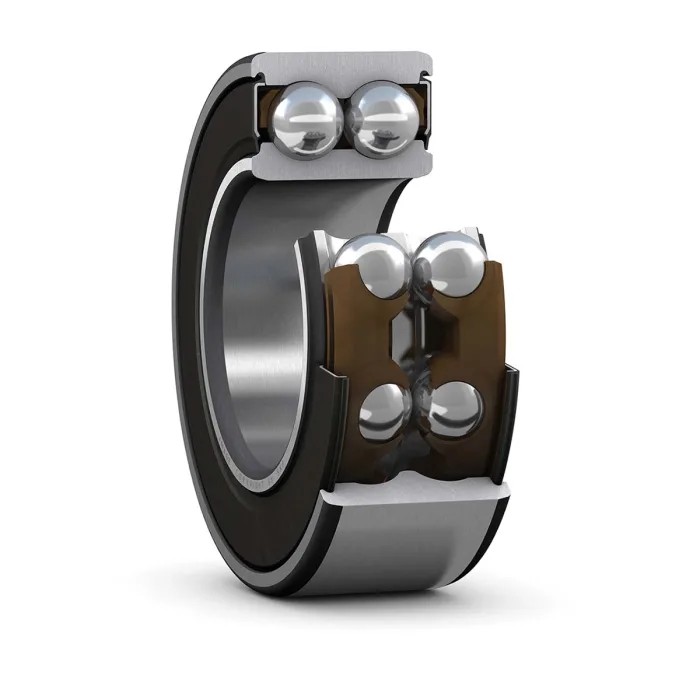

SKF 3200 A-2RS1TN9/MT33 is a high-quality 2 row angular contact ball bearing with an inside diameter of 10 mm, outside diameter of 30 mm, and race width of 14 mm designed for rigorous industrial and mechanical applications.

This double row angular contact bearing efficiently supports combined radial and axial loads moving in either direction. The offset inner and outer raceways provide reliable load support, while the ground transition from raceway to shoulder minimizes edge stresses and allows handling of increased thrust loads.

Manufactured from ultra-clean steel that is heat processed for enhanced hardness and durability, this bearing is equipped with a fibreglass reinforced nylon 66 cage which offers improved self-lubricating capacity and elasticity to reduce friction and noise levels.

The bearing's sealed ends protect internal components from contamination and extend operational life. It supports a high limiting speed up to 17000 rpm and can operate reliably at temperatures up to +150°C, making it suitable for demanding industrial environments.

Key mechanical characteristics include a contact angle of 30°, static load rating of 4.3 kN, and dynamic load rating of 7.61 kN, making it an excellent choice for applications such as gears, transmission systems, fans, blowers, and industrial pumps.

This bearing is designed to reduce noise, vibration, and heat generation for longer service life. Its enhanced crown cage design offers better ball guidance and reduced friction. Double row angular contact design ensures support for axial and radial loads.

Non-metallic cage withstands high temperatures while providing self-lubrication. Suitable for replacements and new installations in mechanical and industrial machinery. SKF’s 3200 A-2RS1TN9/MT33 bearing is optimized for performance in industrial, manufacturing, HVAC, and machinery use cases requiring reliable rotary bearings.

Browse the EnvMart catalog for a wide range of ball bearings and rotary bearing solutions to suit your machinery needs.
