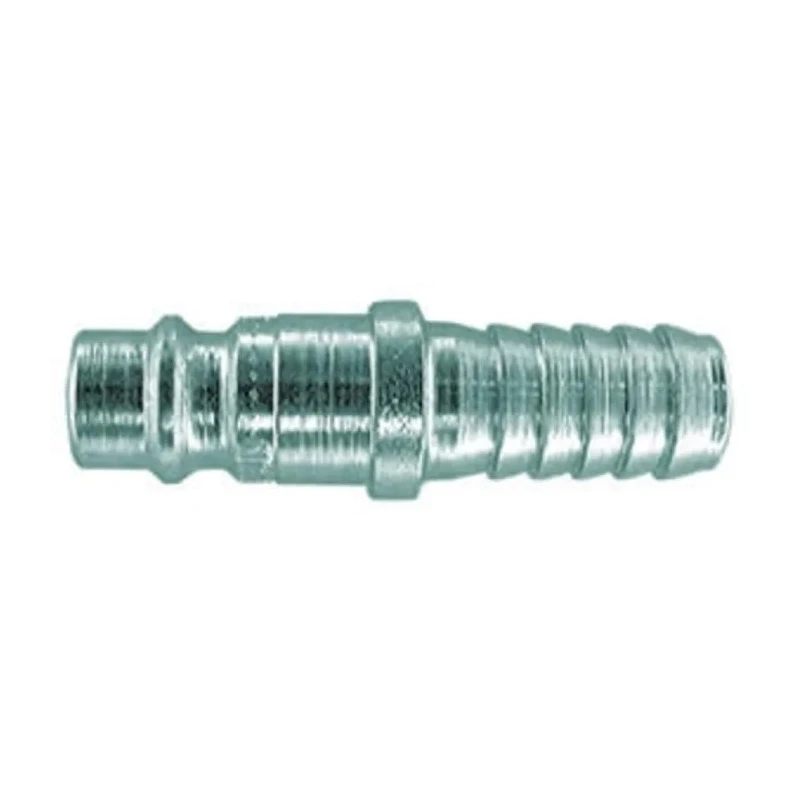

CEJN Steel Pneumatic Quick Connect Coupling Male ISO-standard 6.3mm 16 bar Zinc Plated 103105002

CEJN 103105002 Steel Pneumatic Quick Connect Coupling Male is engineered for robust pneumatic connections meeting ISO standards. It features a 6.3mm hose barb connection with male ISO-standard threads and a durable zinc-plated steel body designed for strength and corrosion resistance. The coupling operates safely up to 16 bar pressure and withstands temperatures ranging from -20°C to 100°C.

This Series 310 coupling includes a pre-applied thread sealant on male threads for leak-proof joining and offers nominal 5.3 mm flow diameter for optimal airflow performance in demanding industrial environments. The Series 310 vented safety version disconnects in two stages to vent the coupling, reducing the risk of sudden component separation that could cause operator injury.

It complies with multiple industry standards including ISO 6150 B, ISO 4414, MIL C 4109 1/4", EN 983, and A-A 59439, allowing interchangeability with US Mil C 4109 1/4in and Rectus 23/24 standards. The NBR seal material ensures a secure sealing interface.

This coupling is ideal for applications in manufacturing, fluid power, pneumatic tool connections, and maintenance of automated pneumatic systems. Its zinc-plated finish enhances durability and resistance in industrial and commercial settings.

Male ISO-standard thread for reliable pneumatic connections. Zinc-plated steel body offers corrosion resistance. Operates at maximum pressure of 16 bar with operating temperature up to 100°C. Pre-applied thread sealant ensures leak-free assembly.

Complies with ISO 6150 B, ISO 4414, MIL C 4109 1/4", EN 983, and A-A 59439 standards. Nominal flow diameter of 5.3 mm provides efficient airflow. Two-stage vented safety design minimizes risk of sudden separation. Suitable for industrial pneumatic and fluid power applications.
