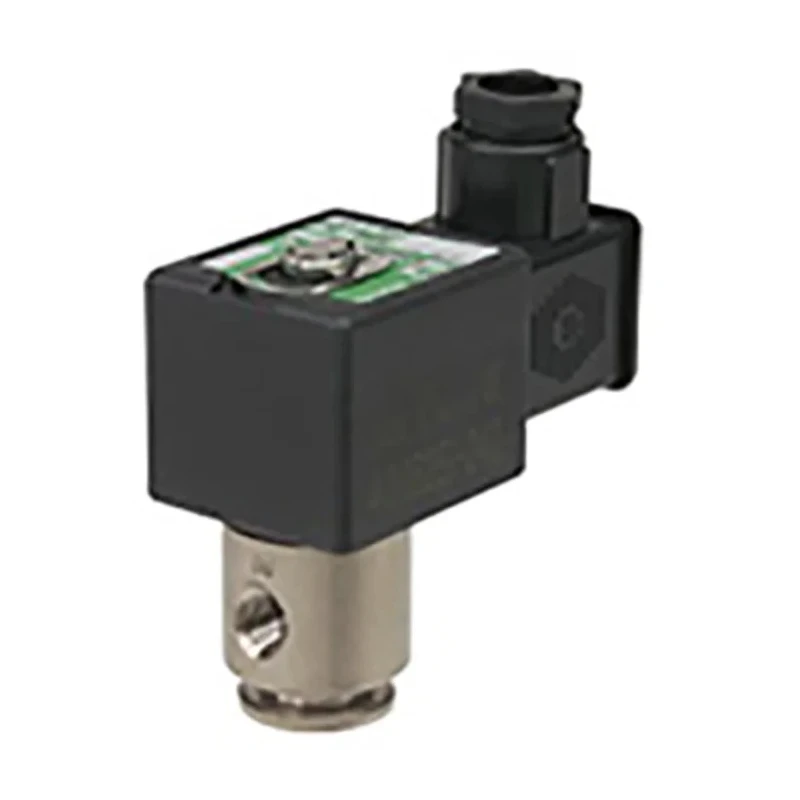

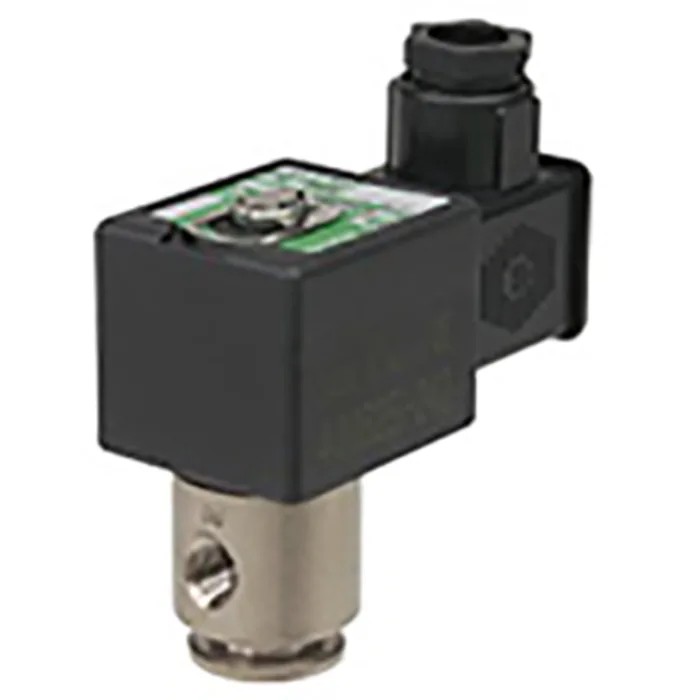

EMERSON ? ASCO Nickel Plated Brass 2 Port Normally Closed Solenoid Valve , 1/8 in NPT, 230V AC SCB264D009.230/50

EMERSON ASCO SCB264D009.230/50 is a high-quality solenoid valve designed for demanding industrial and fluid power applications. This two-port, normally closed solenoid valve is constructed with a nickel-plated brass body, providing excellent corrosion resistance and mechanical strength. It features 1/8 inch NPT inlet and outlet ports that facilitate threaded connections compatible with standard industrial piping systems.

Operating at a supply voltage of 230V AC, this valve is suitable for a wide range of systems requiring reliable actuation. The valve is specifically designed for liquid CO2 applications, handling high pressures up to 70 bar without requiring external pressure for operation. Its compact and lightweight design allows flexible installation, including mounting in any orientation without performance loss.

The solenoid valve complies with rigorous industry standards including IP65 for dust and water protection, EN 60529, EC Directives, IEC 335, and ISO 4400 / EN 175301-803. It is certified for robust performance but does not hold hazardous area certification, making it ideal for non-explosive environments.

The valve actuator offers fast response times with a maximum closing time of 25 milliseconds and the same maximum opening time, ensuring efficient fluid control. The flow factor Kv of 0.05 m³/h enables precise regulation of liquid flow rates. The operational temperature range between -20°C and 50°C suits various industrial environments.

Constructed with nickel plated brass for durability and corrosion resistance. Two-port, normally closed design for fluid control applications. Threaded 1/8 inch NPT inlet and outlet ports for easy connection. Operates at 230V AC supply voltage.

Supports high operating pressure of up to 70 bar. Conforms to IP65 and multiple international standards. Compact, lightweight, and position-flexible installation. Fast response times with 25 ms typical opening and closing.

Flow factor Kv of 0.05 m³/h suitable for precise liquid control. Operating temperature range from -20°C to 50°C.

This EMERSON ASCO solenoid valve is ideal for use in industrial automation, HVAC, chemical processing, and liquid CO2 fluid control systems. The valve’s reliable performance, precise flow characteristics, and rugged construction ensure long service life and efficient operation. EnvMart offers this premium solenoid valve model SCB264D009.230/50 to meet your industrial fluid handling requirements.
