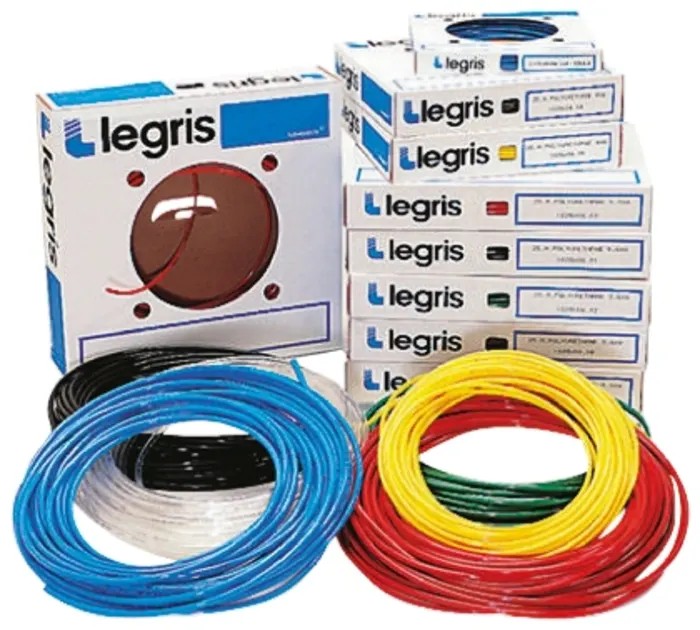

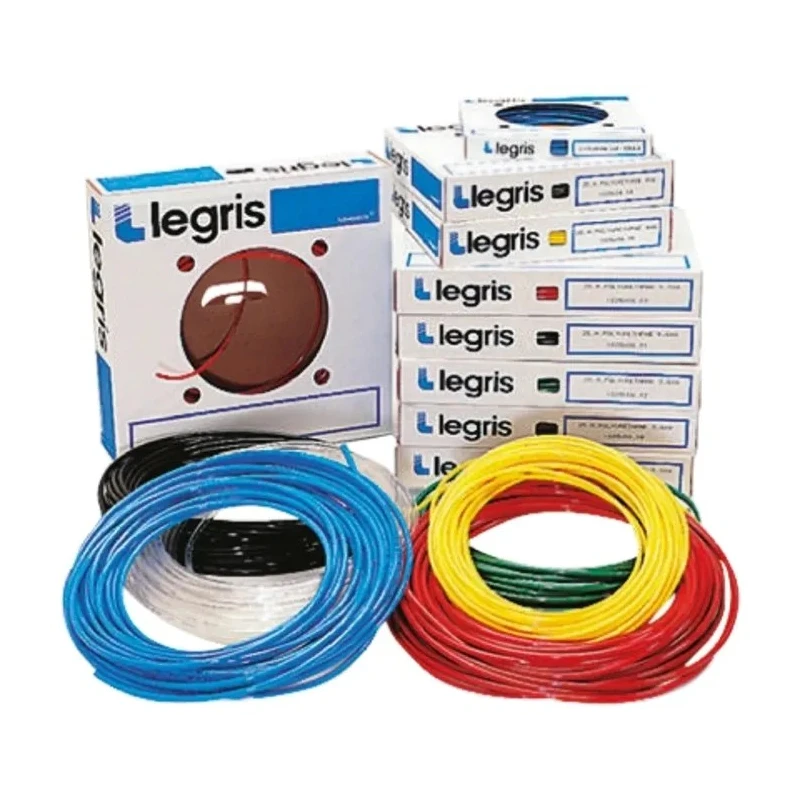

Legris Compressed Air Pipe Blue Polyurethane 4 mm 25 m 1025U04R04

Legris 1025U04R04 Compressed Air Pipe is a blue polyurethane flexible tubing designed to meet diverse industrial pneumatic and fluid conveyance requirements. This 4 mm outside diameter pipe extends 25 meters in length and supports a maximum operating pressure of 10 bar within a temperature range of -15°C to 70°C.

Made from high-quality polyurethane, the pipe offers exceptional mechanical properties including an optimal bend radius and unmatched abrasion resistance for single-layer tubing. It features resistance to humidity, UV light, vibrations, and chemicals while being silicone-free and anti-bacterial to assure longevity and hygiene in food and beverage environments.

The tubing is suitable for factory automation, vehicle assembly, food processing, and other industrial manufacturing where compressed air, vacuum, and fluid conveyance are critical. The tube's surface hardness provides superior vacuum capability, and its consistent tensile strength ensures long service life under rapid pneumatic cycling.

Legris provides specific material grades including PU ester for pneumatic applications, PU ether with no water absorption, and PU ether food-grade "crystal" with enhanced chemical resistance, catering to broad application needs.

This product complies with several standards and regulations including RoHS 2002/95/EC and 2011/65/EC, PED 97/23/EC, REACH 1907/2006, and FDA 21 CFR parts relevant for food contact safety. Manufactured in France, it adheres to NF E49-101 standards ensuring reliability and quality control for demanding industrial conditions.

Manufactured from flexible polyurethane material offering excellent bend radius and abrasion resistance. Operates at a maximum pressure of 10 bar and temperature range from -15°C to 70°C. Features humidity, UV, vibration, and chemical resistance with silicone-free, anti-bacterial properties.

Suitable for compressed air, vacuum, water, and food industry usage requiring rapid cycles. Polyurethane tubing allows 50% space reduction compared to semi-rigid tubing and is available in multiple grades for specific applications.

Complies with RoHS, PED, REACH directives and FDA food-grade standards for safe industrial use. Produced in France ensuring quality and compliance with NF E49-101 standard. Explore the Industrial Supplies category for more compressed air piping solutions and accessories from Legris and other leading brands on EnvMart.
