Legris Compressed Air Pipe Black Polyurethane 4 mm 25 m 1025U04 01

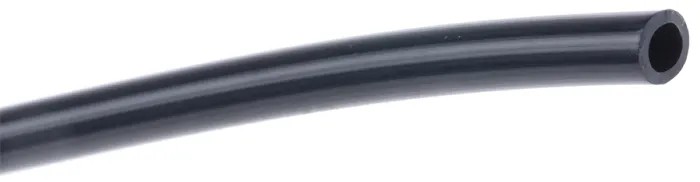

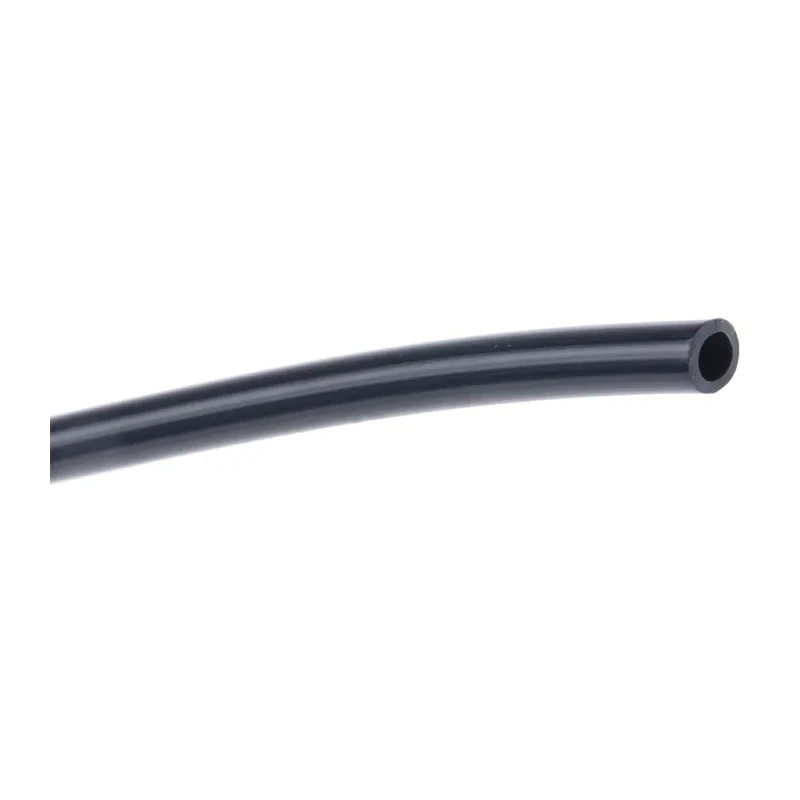

Legris 1025U04 01 Compressed Air Pipe is a black polyurethane flexible tubing with a 4 mm outside diameter and 2.5 mm inside diameter, extending to 25 meters in length. This high-quality pipe is engineered to serve pneumatic systems, industrial fluid transport, food processing, and vacuum applications requiring durability and chemical resistance.

Constructed from polyurethane materials including PU ester, PU ether, and food-grade "crystal" grades, this pipe offers outstanding flexibility, mechanical strength, and abrasion resistance. It reduces installation space requirements by up to 50% compared to semi-rigid tubing options.

The pipe’s superior attributes include optimal bend radius, UV resistance, excellent vibration absorption, and consistent tensile strength ensuring long service life. Silicone-free design makes it compatible with sensitive pneumatic and food handling environments.

Operating parameters include a maximum working pressure of 10 bar and temperature tolerance from -15°C to +70°C, making it suitable for a wide range of industrial and food-grade applications. It conforms to strict standards like RoHS (2002/95/EC, 2011/65/EC), PED (97/23/EC), REACH (1907/2006), and FDA 21 CFR certifications, ensuring regulatory compliance.

This product is manufactured in France, promising reliable quality and performance. It is ideal for factory automation, miscellaneous manufacturing processes, vehicle assembly, and fluid conveyance across pneumatic and vacuum systems.

Constructed from black polyurethane providing excellent mechanical properties. 25-meter length with 4 mm outside diameter and 2.5 mm inside diameter for effective flow. Maximum operating pressure rated at 10 bar. Operating temperature from -15°C to 70°C suits diverse industrial conditions.

Complies with multiple certifications including RoHS, PED, REACH, and FDA food-grade standards. UV and abrasion resistant with optimal bend radius to facilitate installation. Suitable for compressed air, fluid conveying, vacuum, and food applications.

Manufactured in France ensuring stringent quality control. Explore more pneumatic connectors, fittings, and hoses in EnvMart’s Industrial Supplies category with high-quality products from leading brands like Legris.
