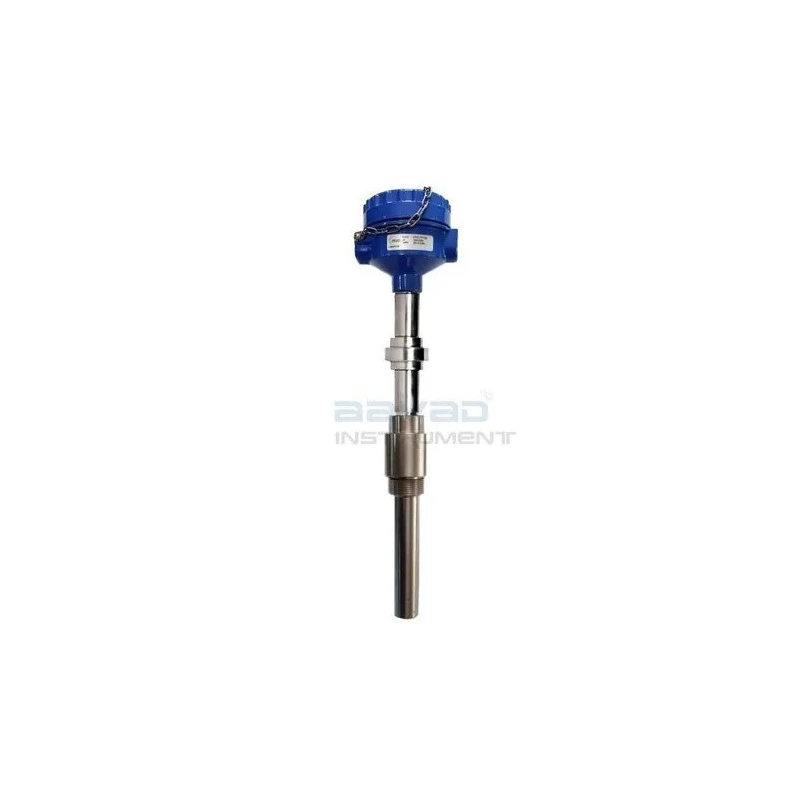

Stainless Steel RTD With Bar Stock Thermowell
Specifications
| Accuracy | Class A |
|---|---|
| Material | Stainless Steel |
| MOC | SS |
| Material Grade | SS 316 |
| Connection | 1/2 Npt (M) Nipple-Union-Nipple| 150 mm in SS316 |
| Outer Diameter | 6 mm |
| Model | APFD |
| Temperature | -50 To 400 Degree C |
| Sensor Type | PT-100 |
| Insulation | Compacted MgO Insulation |
| Process connection | 1/2 Bsp (m) adjustable |
| Configuration | Duplex |
| Protection Head | Die-cast aluminum flameproof head with threaded cap & chain |
| Terminal Block | Nickel-plated ceramic terminal block |
| No. of Wire in Simplex | 3 |
| Total no. of Wires | 3+3 |
| No. of Cable Entry | Double |
| Head Protection Class | Ip-67 |
| Head Cable Entry Connection | 1/2 Npt |
| Length below Head | 400 mm |
| Bore Size | 8 mm |
| Extension Length | 70 mm |
| Well (u) Insertion Length below Process Connection | 150 mm |
| Thermowell Outer Diameter | 28 mm tapering from 24 mm for a tail portion of 150mm |
Key Features
- High performance
- High Durability
Product Description
RTD sensors with thermowells are designed for processes where corrosion, pressure, abrasion, or shear force may threaten the life of the element. Thermowells, machined from solid bar stock or fabricated from a pipe, shield the RTD element from external aberrations. Fabricated thermowells offer a lower-cost alternative and are used in applications where high pressure is not a consideration.
- Easy installation
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -50 to 400 degrees Celsius.
The thermowell is made from stainless steel, specifically SS 316 grade.
It has an accuracy rating of Class A.
This unit features a PT-100 sensor type.
The outer diameter of the thermowell is 28 mm, tapering from 24 mm for a tail portion of 150 mm.
It features a 1/2 BSP (M) adjustable process connection.
The insertion length below the process connection is 150 mm.
It is equipped with compacted MgO insulation.
The head protection class is rated at IP-67.
The length below the head is 400 mm.
It utilizes a nickel-plated ceramic terminal block.
The head features a 1/2 NPT cable entry connection with double entries.
