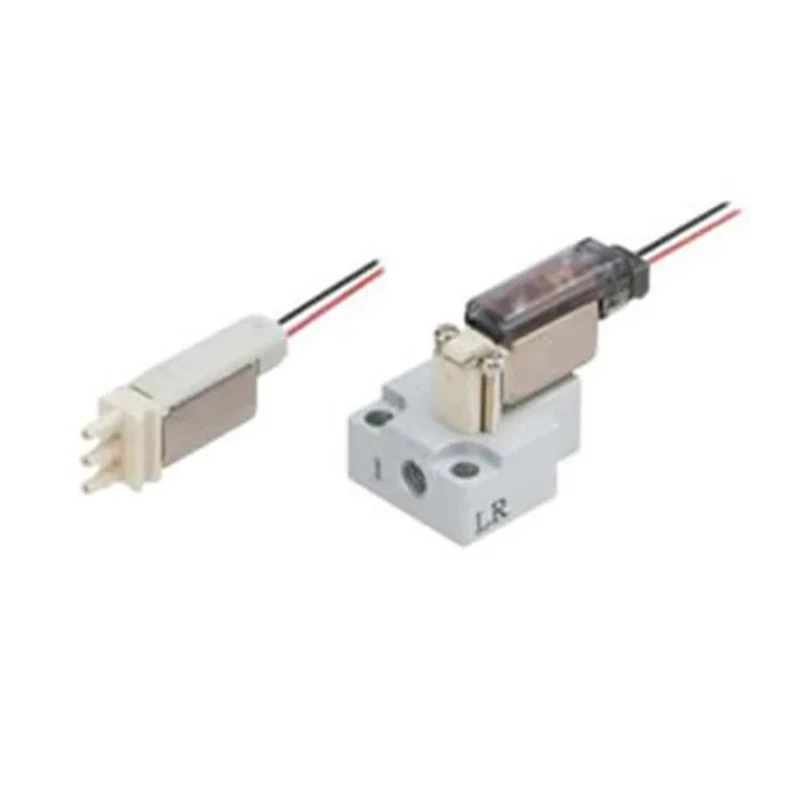

SMC 3 Port Normally Open Resin Body Solenoid Valve 24V S070B-5DC

Free Delivery in India | Lowest Global Shipping Charges

SMC 3 Port Normally Open Resin Body Solenoid Valve 24V S070B-5DC



Category Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Power Consumption	0.35W (std), 0.1W (w/power saving circuit)
Brand	SMC
Body Material	Resin
Maximum Operating Pressure	0.5 Mpa
Model	S070B-5DC
Gross Weight	5g (single unit valve)
Series	S070B
Number Of Ports	3
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-10°C
Orifice Diameter	4mm
Supply Voltage	24V
Operation Noise	38dB(A) or less
Inlet Port Gender	Female
Flow Factor Kv	15L/min
Valve width	7mm

Key Features

This compact valve features a 3 port configuration with female inlet and outlet genders.
The valve operates as Normally Open (NO) with an orifice diameter of 4 mm.
It offers a maximum operating pressure of 0.5 MPa and temperature range from -10°C to 50°C.
The valve width is a slim 7 mm and the single unit valve weighs approximately 5 grams.
Power consumption is low at 0.35W standard and 0.1W with the power-saving circuit.
Operation noise is minimized to 38 dB(A) or less, suitable for sensitive equipment environments.
The valve is ideal for use in analysers, medical instruments, and semiconductor manufacturing equipment.
Its super compact design facilitates easy station adjustments using the stacking base system.

Product Description

The SMC S070B-5DC is a super compact, direct-acting solenoid valve designed specifically for industrial air and vacuum applications. Manufactured in Japan, this 3 port normally open (NO) valve features a durable resin body optimized for lightweight and quiet operation.

Operating at a supply voltage of 24V, the valve has a slim profile with a width of only 7 mm and a weight of 5 grams for the single unit, making it suitable for tight installation spaces. It functions with an orifice diameter of 4 mm and delivers a flow factor Kv of 15 L/min.

The valve supports a maximum operating pressure of 0.5 MPa and an operating temperature range from -10°C to 50°C, enabling reliable performance under varied conditions. Power consumption is energy-efficient, rated at 0.35W normally and reduced to 0.1W when using the power-saving circuit, which helps reduce ongoing energy costs.

Noise levels have been minimized to 38 dB(A) or less, making this solenoid valve ideal for use in environments requiring low noise interference such as medical equipment and semiconductor manufacturing settings.

Additionally, the S070 series is engineered for flexibility with an easy-to-increase or decrease number of stations via the stacking base, catering to varying system sizes. Its female gendered inlet and outlet ports facilitate straightforward pipeline connections.

Compact 3 port Normally Open solenoid valve for air and vacuum. Resin body construction for lightweight and durable use. Operating voltage: 24V DC with low power consumption. Slim 7 mm valve width and lightweight 5 g single unit weight.

Quiet operation with noise level at 38 dB(A) or less. Suitable for analysers, medical machines, and semiconductor equipment. Flexible stacking base design for easy station adjustment.

This solenoid valve is a versatile and reliable solution for demanding industrial applications that require precise valve control with minimal space and noise impact. Browse the full range of Industrial Valves & Valve Fittings at EnvMart for compatible components and accessories.
