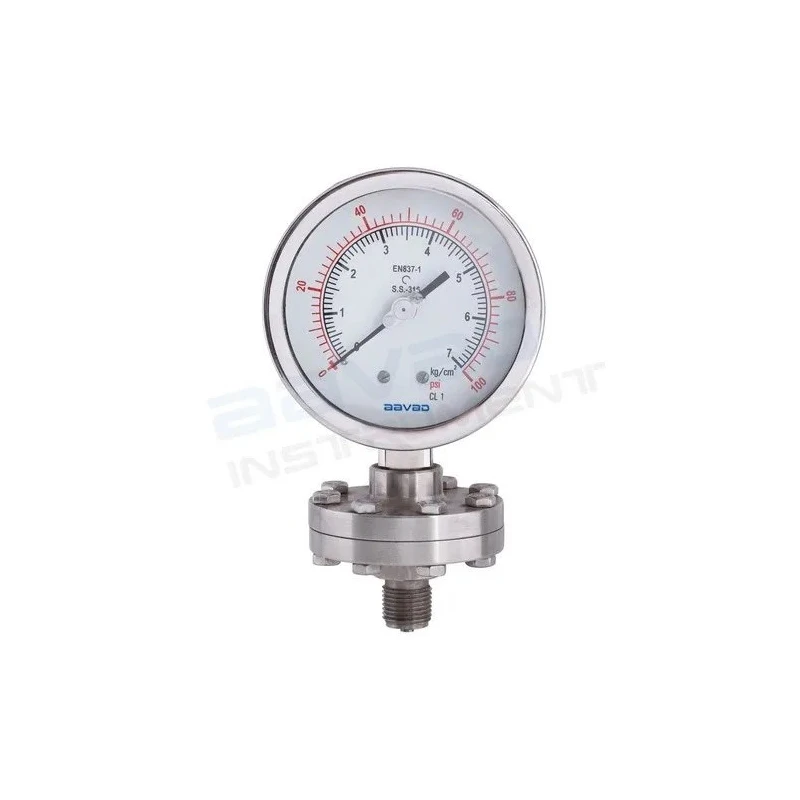

Flange Type Pressure Gauge 7 Kg/cm2
Specifications
| Accuracy | +-1.6% FSD |
|---|---|
| Capacity | 7 Kg/Cm2 |
| Mounting | Direct bottom |
| Connection | Flange 2 150 RF |
| Max. Temperature | 200 Degree C |
| GLASS | Shatterproof Glass |
| Configuration | Sealed diaphragm |
| Dial Size | 6 inch / 150 mm |
| Dial | Aluminium| black marking on White background |
| Pointer | Micro Zero Pointer |
| Joint | Argon arc welded |
| Over Range Protection | 130% of FSD |
| SKU | SDPG-6 |
| Min. Temperature | -40 Degree C |
Key Features
- High accuracy
- Long service life
- Low cost
Product Description
Diaphragm seals are used for the protection of pressure measuring instruments in applications with difficult media. In diaphragm seal systems, the diaphragm of the diaphragm seal affects the separation of the instrument and the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the diaphragm seal system.
- Easy to install
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure capacity of this gauge is 7 Kg/cm².
The accuracy rating of this pressure gauge is ±1.6% of Full Scale Deflection (FSD).
This model uses a flange connection with a 2 inch 150 RF specification.
The operating temperature range for this gauge is from -40°C to 200°C.
The dial size of this pressure gauge is 6 inches (150 mm).
The gauge features shatterproof glass and an aluminium dial with black markings on a white background.
This model is configured with a sealed diaphragm for effective pressure transmission.
It is equipped with a micro zero pointer for precise readings.
The mounting style of this pressure gauge is direct bottom mounting.
This gauge provides over range protection up to 130% of Full Scale Deflection (FSD).
The joint of this gauge is constructed using argon arc welding.
Yes, this model is designed for easy installation.
