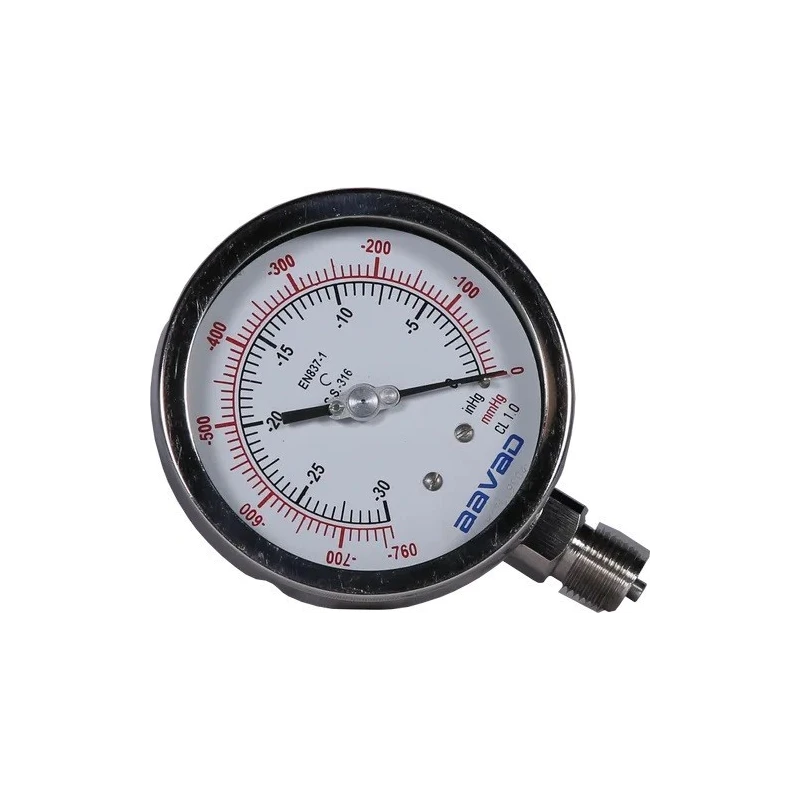

Analog Vaccum pressure Gauge
Specifications
| Display Type | Analog |
|---|---|
| Mounting | Bottom |
| Connection Type | BSP |
| Temperature | 150 deg C |
| Window Material | Safety Glass |
| Measuring Principle | Bourdon Tube |
| Pressure Range | 0 to 2000 bar |
| Dial Size | 1.5 inch / 40 mm |
| Connection Size | 1/4 inch |
| Wetted Parts | AISI SS 304 |
| Accuracy class | 1.6 |
| Liquid Filling | Glycerin |
| Overrange Protection | 130per. of Full Scale |
| Use Process | Industries |
Key Features
- High accuracy
- Long service life
- Easy to install
Product Description
We take pleasure to introduce ourselves as one of the leading organizations, engaged in offering a comprehensive range of Vaccum Pressure gauges The offered gauges are manufactured utilizing superior quality raw material and the latest technology. Moreover, a team of our quality controllers conducts a series of quality tests on the entire range to seek out any possible defects. In tune with industry standards, we provide an entire range of various customized options and industry-leading prices.AdjustmentDial: Aluminum, White background with Black NumeralsOverrange protection: 130% of Full ScaleConnection : Flange Connection / Standard Thread Other RequirementMounting: Direct Back, Direct Bottom, Panel Mounting, Flange Mounting, Surface Mounting, Bracket MountingProcess connection: As per requirement Case fill: Glycerin, OptionalWindow: Shatterproof / Toughened / Safety GlassAlso Available in Dial Size: 250 / 150 / 100 / 80 / 63 / 50 mmConnection: 1/8", 3/8". 1/2" BSP/NPT (M/F)Application:Foodstuff Industry/Machine and Testing/Low-Pressure Air/Sanitary/Food Process/Dairy machine manufacturer//Ice-cream machine manufacturer/Machine construction/Paper Industry/Plastics Industry/Beverages Industry/Petrochemical Industry/Chemical Industry/Apparatus construction/Water, air and gas/Gas Application/Pharmaceutical Industry/Pharma Industry/Oil/Petroleum Industry/Gas Industry/Drilling rigs/Process Industry/Power Supply/Steam Industry.
- Low cost
- Sturdy structure
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pressure range of this model is from 0 to 2000 bar.
It features a BSP connection type with a connection size of 1/4 inch.
The wetted parts are made from AISI SS 304.
This gauge has an accuracy class of 1.6.
It can withstand temperatures up to 150 degrees Celsius.
The display type is analog.
The overrange protection is set at 130% of the full scale.
Mounting options include direct back, direct bottom, panel mounting, flange mounting, surface mounting, and bracket mounting.
The gauge uses glycerin for liquid filling.
It is suitable for various industries including foodstuff, pharmaceuticals, petrochemicals, and power supply.
The window material is made of safety glass.
It utilizes the Bourdon tube measuring principle.
