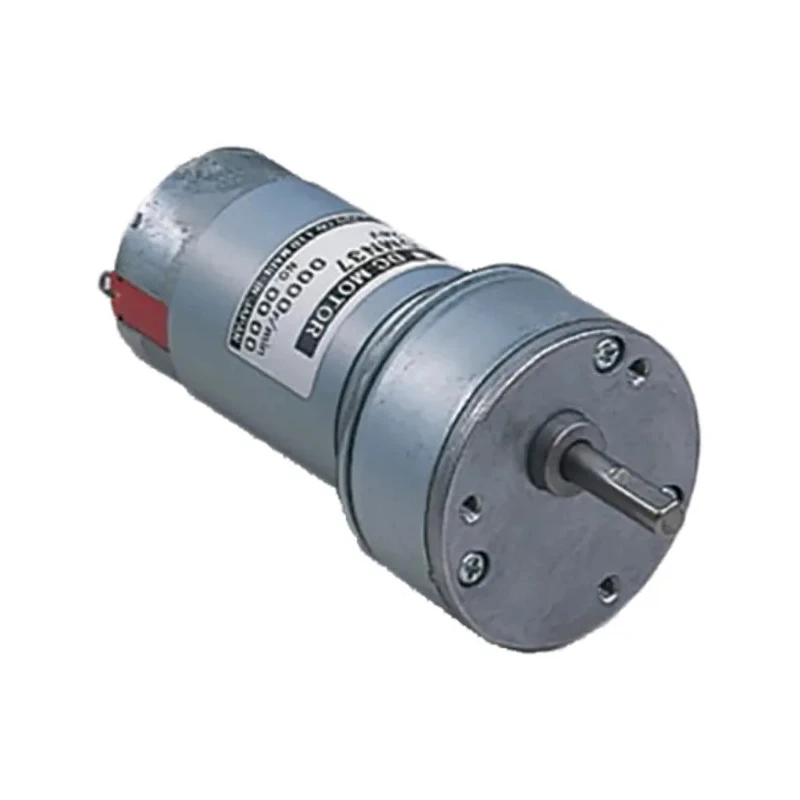

NIDEC ADVANCED MOTOR Brushed Geared DC Geared Motor, 9.2W, 24V dc, 1Nm Torque, 52rpm, 6.8mm Shaft Diameter DMN37K50G72B

NIDEC ADVANCED MOTOR DMN37K50G72B is a brushed geared DC motor designed for precision industrial applications requiring controlled speed and torque. With a power rating of 9.2W and a 24V dc supply voltage, it delivers reliable performance in diverse environments.

The motor features a spur gearhead with a 50:1 gear ratio, significantly increasing output torque to 1Nm while reducing rotational speed to 52rpm. This combination is ideal for tasks demanding high torque at low speeds such as automation, robotics, and control gear mechanisms.

Constructed from durable steel with a 6.8mm shaft diameter and 21mm shaft length, the motor ensures robust mechanical connections and longevity. The screw mount type enables versatile and secure mounting options in tight spaces.

The motor’s compact dimensions (112.8mm length, 50mm width, and 50mm depth) make it well-suited for machinery where space constraints exist. Its brushed design supports bi-directional rotation controlled by appropriate drive electronics.

RoHS compliance signifies adherence to environmental standards, making the product suitable for modern industrial installations prioritizing sustainability. Originating from Japan, the motor guarantees high build quality and reliability.

This geared motor offers a spur gear type with a 50:1 gear ratio to optimize torque output. Rated at 9.2W and 24V dc, it supports current draw up to 600mA for efficient operation. Compact and robust construction with steel material and screw mounting for secure installation.

Ideal for industrial automation, control systems, robotics, and other precision applications. Supports bi-directional operation with brush-type DC motor technology. Explore EnvMart’s wide range of motors for varying industrial, laboratory, and commercial uses to find the perfect solution for your application needs.
