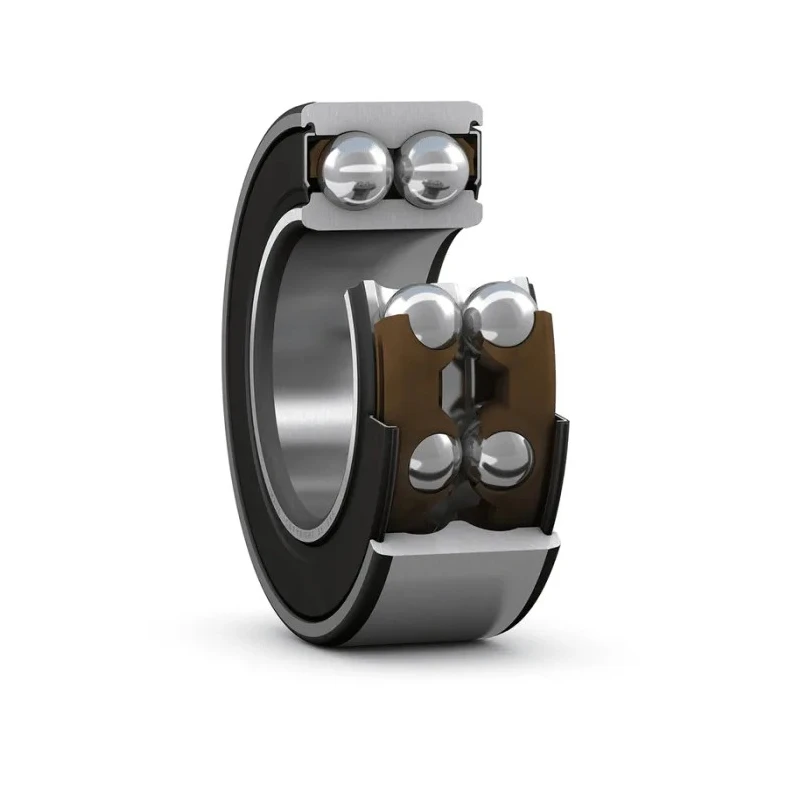

SKF Double Row Angular Contact Ball Bearing 45 mm ID, 100 mm OD, 39.7 mm Race Width 3309 A-2Z/C3MT33

SKF 3309 A-2Z/C3MT33 is a high-quality double row angular contact ball bearing featuring an inside diameter of 45 mm, outside diameter of 100 mm, and race width of 39.7 mm. Manufactured with precision, this bearing includes sheet metal cage material and steel balls, delivering robust performance and durability.

The inner and outer ring raceways are axially displaced relative to each other, allowing the bearing to accommodate combined radial and axial loads simultaneously. The 30° contact angle significantly increases axial load carrying capacity, making it ideal for applications demanding combined load management.

The bearing's shielded end type provides protection against contaminants, enhancing reliability in industrial environments. Its internal clearance is rated C3, enabling superior operational capability under thermal expansion conditions.

Rated with a static load capacity of 53 kN and a dynamic load capacity of 75 kN, this bearing supports demanding mechanical requirements. The Series 3 Medium and parallel bore design further optimizes the bearing for medium-load industrial use.

With a limiting speed of 4800 rpm, the SKF 3309 A-2Z/C3MT33 bearing is suited for applications in mechanical machinery, industrial equipment, manufacturing, and fluid power systems requiring high precision and durability.

Comprises two rows of angular contact balls for enhanced load capacity. Inner and outer ring raceways are axially displaced to accommodate combined loads. Features a 30° contact angle for greater axial load support. Shielded end type with sheet metal cage and steel balls for durability.

Internal clearance C3 ensures improved performance under thermal expansion. Static load rating of 53 kN and dynamic load rating of 75 kN for reliable operation. Series 3 Medium bearing with parallel bore type. Limiting speed rated up to 4800 rpm for high-speed applications.

Ideal for use in industries such as manufacturing machinery, construction equipment, fluid power systems, and HVAC where reliable combined loading capability is crucial. Explore more high-quality SKF bearings and mechanical components in the Industrial Machines & Instruments category at EnvMart.
