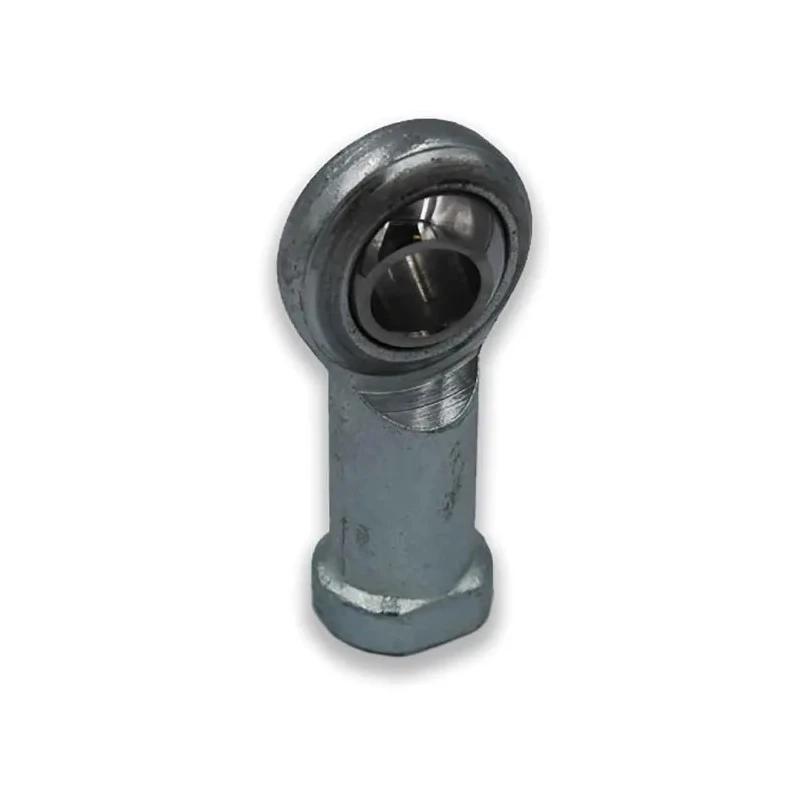

LDK M8 Female Carbon Steel Rod End 8mm Bore Metric, Left Hand Thread PHS 8ECL

LDK PHS 8ECL is a high-quality female rod end bearing designed for use in mechanical and fluid power applications requiring rotary bearings and housing units. This rod end features an 8mm bore diameter with an M8 female connection threaded for metric sizing and left hand directionality, ensuring compatibility with diverse mechanical setups.

The bearing ball is made from premium AISI 52100 bearing steel, which has been heat treated to achieve a hardness of HRC 58-64. Precision ground and polished, the ball provides smooth rotational movement and long-lasting performance under heavy loads. Surrounding the ball, the race is constructed from a PTFE composite material that reduces friction and wear during sliding contact.

The body of the rod end consists of carbon steel with a clear zinc plating that enhances corrosion resistance and prolongs service life. The combination of steel and PTFE composite materials on the sliding surfaces ensures reliability in demanding industrial, manufacturing, agricultural, and automotive applications where rotary bearing units are essential.

This rod end also maintains a robust dynamic load rating of 7.7kN and static load rating of 13.2kN, making it suitable for high-stress environments. Its outside diameter is 22mm, with an overall width of 47mm, dimensions that provide compact yet sturdy performance in confined spaces.

Manufactured in China, the LDK PHS 8ECL is supplied as a new product, ready for immediate integration within systems requiring durable and precision-engineered rod ends. It meets metric thread standards with a left-hand thread direction, specifically M8 x 1.25, tailored for precise mechanical interfacing.

Made of carbon steel with clear zinc plating for corrosion resistance. Ball component manufactured from AISI 52100 bearing steel, heat treated with HRC 58-64, precision ground and polished. Incorporates a PTFE composite race for smooth motion and wear resistance.

Sliding contact surfaces combine steel and PTFE composite for enhanced durability. Designed for dynamic load rating of 7.7kN and static load rating of 13.2kN. Outside diameter measures 22mm with overall width of 47mm. Thread standard is metric with M8 x 1.25 left hand thread specification.

Ideal for applications requiring reliable rotary bearing units. Made in China with new product condition guaranteed.
