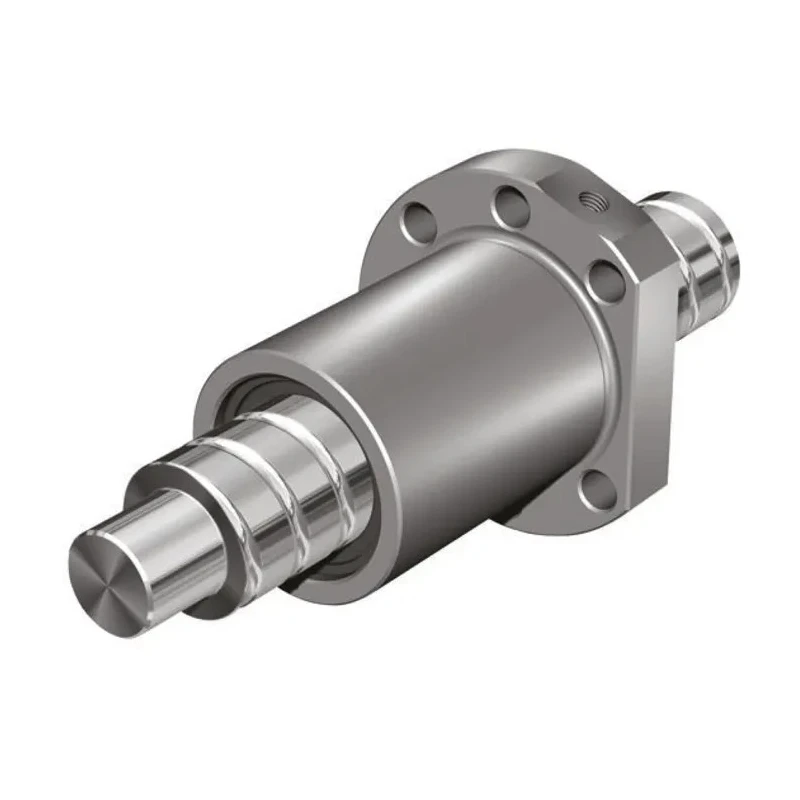

Bosch Rexroth Flanged Round Nut 10mm Lead Size, 32mm Outside Diameter, 77mm Length, Screw Shaft Diameter 31mm R1502 340 86
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Bosch Rexroth |
| Model | R1502 340 86 |
| Overall Length | 77mm |
| Outside diameter | 32mm |
| Sub Type | Flanged Round |
| Standards/Approvals | DIN 69051 |
| Lead Size | 10mm |
| Screw Shaft Diameter | 31mm |
| Bosch Rexroth Flanged Round Nut, 5mm Lead SizeBrand | Bosch Rexroth |
| Bosch Rexroth Nut, 95 mm Long, 25 mm Lead Size 24 mmBrand | Bosch Rexroth |
Key Features
- Manufactured to DIN 69051 standards ensuring high quality.
- Features a flange for secure mounting with smooth outer shell design.
- Suitable for use with screw shaft diameter of 31mm.
- Includes options for with backlash, reduced backlash, and preload variations.
- Precision rolled screws compatible with tolerance grades T5, T7, and T9.
- High load rating and smooth operation due to optimal ball recirculation design.
- Widely applicable in cutting and forming machine tools, automation, woodworking, printing, and packaging industries.
- Made in Germany ensuring robust industrial grade construction.
Product Description
Bosch Rexroth R1502 340 86 Flanged Round Nut is a precision mechanical power transmission component designed for use with ball screws to convert rotary motion into linear motion and vice versa.
This nut has a lead size of 10mm, an outside diameter of 32mm, and an overall length of 77mm, fitting screw shafts of 31mm diameter. It conforms to DIN 69051, part 5 standards for mounting dimensions with flange type C and standard seals.
The nut is available in versions with backlash, reduced backlash, and preload options (2%, 3%, and 5%) tailored for precision rolled screws with tolerance grades T5, T7, and T9. Its internal design ensures smooth operation via optimal ball lift-off during recirculation, enabling high load ratings through a large number of balls and a short nut length without protruding parts, facilitating easy mounting.
Applications include cutting and forming machine tools, automation and handling systems, woodworking machinery, electrical and electronics equipment, printing and paper devices, injection molding machines, the food and packaging industry, medical equipment, and textile manufacturing. Its smooth outer shell design also contributes to effective wiping sealing in dynamic applications.
Made in Germany, this component is manufactured to provide reliable performance in demanding industrial settings requiring precise linear motion control. Manufactured to DIN 69051 standards ensuring high quality. Features a flange for secure mounting with smooth outer shell design.
Suitable for use with screw shaft diameter of 31mm. Includes options for with backlash, reduced backlash, and preload variations. Precision rolled screws compatible with tolerance grades T5, T7, and T9. High load rating and smooth operation due to optimal ball recirculation design.
Widely applicable in cutting and forming machine tools, automation, woodworking, printing, and packaging industries. Made in Germany ensuring robust industrial grade construction.
Choose Bosch Rexroth nuts for precise and reliable mechanical power transmission components in industrial, manufacturing, and automation applications. Explore a wide range of mechanical components at EnvMart to meet your engineering needs.
Explore more products in our Ball Screw Nuts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an overall length of 77mm, an outside diameter of 32mm, and is designed to fit screw shafts with a diameter of 31mm.
The lead size of this nut is 10mm, which is essential for converting rotary motion into linear motion.
It conforms to DIN 69051 standards, specifically part 5, ensuring proper mounting dimensions and quality.
It is widely applicable in industries such as cutting and forming machine tools, automation, woodworking, printing, packaging, and medical equipment.
This nut is manufactured in Germany, ensuring high-quality industrial-grade construction.
It features an optimal ball recirculation design that allows for high load ratings and smooth operation during use.
The flange allows for secure mounting, contributing to the stability and effectiveness of the nut in applications.
This model is compatible with precision rolled screws that have tolerance grades T5, T7, and T9.
The smooth outer shell design contributes to effective wiping sealing in dynamic applications, enhancing its performance.
The sub-type of this product is a Flanged Round Nut, which is characterized by its flange for mounting.
The model number for this product is R1502 340 86, which identifies it within the Bosch Rexroth range.
